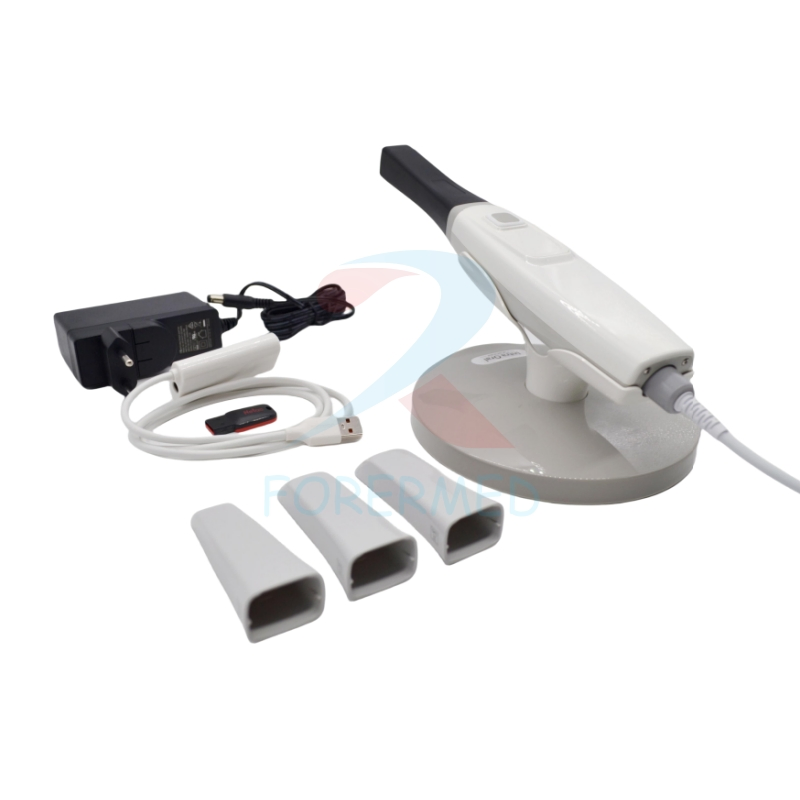

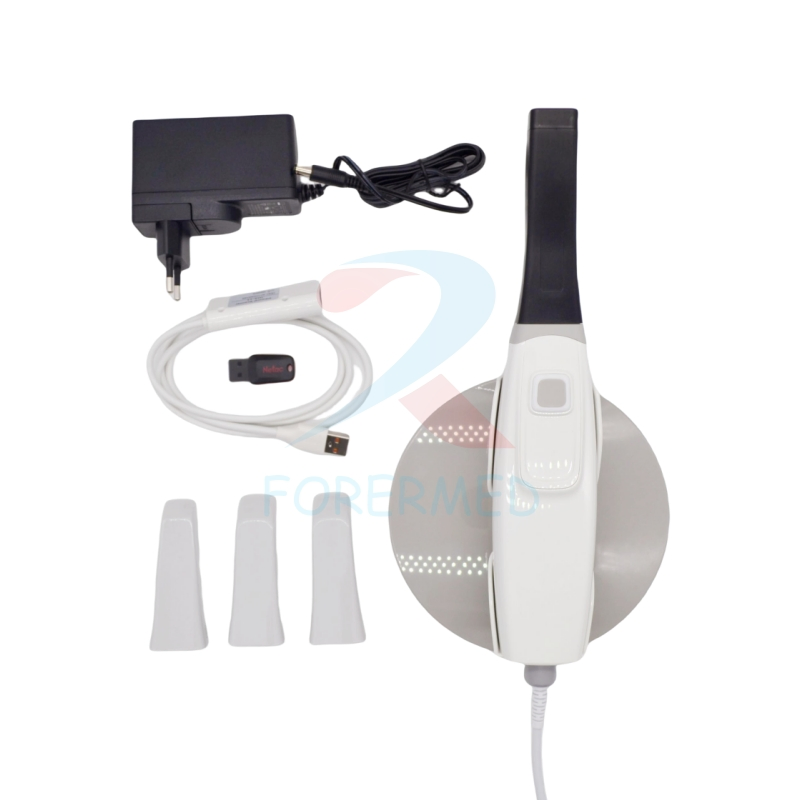

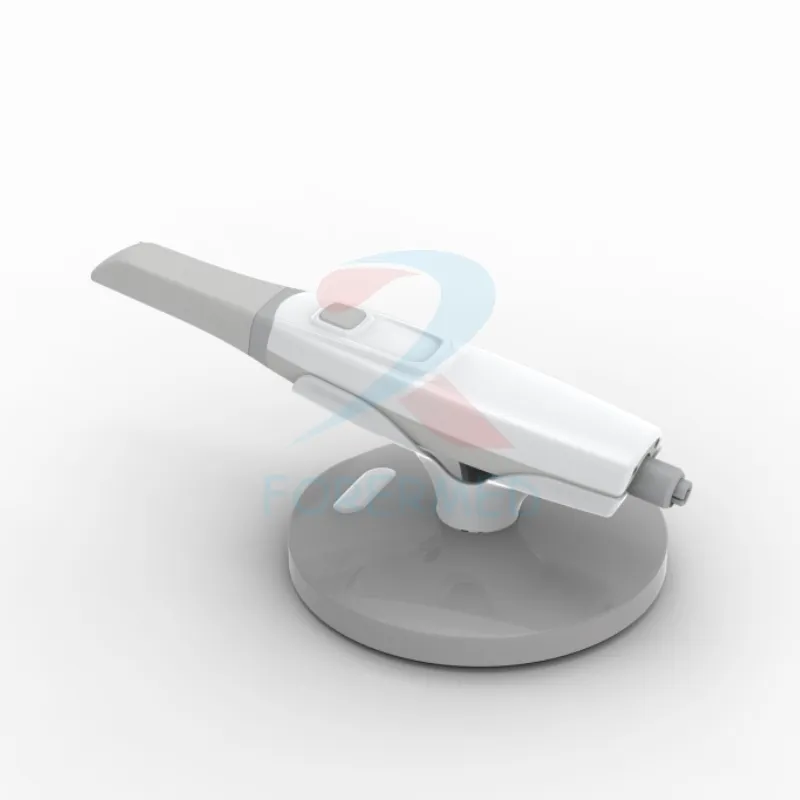

YJ-IOS-32 Dental 3D Intraoral Scanner with Software
Technical Specifications
Feature
Details
Handpiece
Dimension (L×W×H)
240mm×49.5mm×30.5mm
Weight
210g
Scanner Tip
Standard tip size
79mm×19.7mm×15.8mm
Mini tip size
80mm×16mm×11mm
Scan area (Standard)
15mm×15mm
Scan area (Mini)
12mm×12mm
Autoclavable
Up to 100 times (121℃ 16 mins / 134℃ 4 mins)
Accuracy
Crown
<10μm
Full arch
<20μm
Scan Speed
Full arch with occlusion
90s
Connectivity
USB Type
USB 3.0
Output
Data Formats
STL, OBJ, PLY
Recommended System
Category
Recommended Configuration
CPU
Intel Core i7-11700 or higher
RAM
16GB or higher
GPU (Graphic Card)
NVIDIA GeForce 3060 or above (Above 6G memory)
Hard Disk
256GB SSD or above
Display
1920×1080, 60Hz
OS
Windows 10/11 Pro/Corporate (64-bit)
Product Gallery
Frequently Asked Questions
Q: What output file formats does the intraoral scanner support?
A: The scanner supports industry-standard formats including STL, OBJ, and PLY, ensuring compatibility with most CAD/CAM systems.
Q: Can the scanner tips be sterilized?
A: Yes, the tips are autoclavable up to 100 times. They can be processed at 121℃ for 16 minutes or 134℃ for 4 minutes.
Q: What is the scanning accuracy of the YJ-IOS-32?
A: The scanner provides high precision with less than 10μm for crown scans and less than 20μm for full arch scans.
Q: How fast can it complete a full arch scan?
A: A full arch scan including occlusion can be completed in approximately 90 seconds.

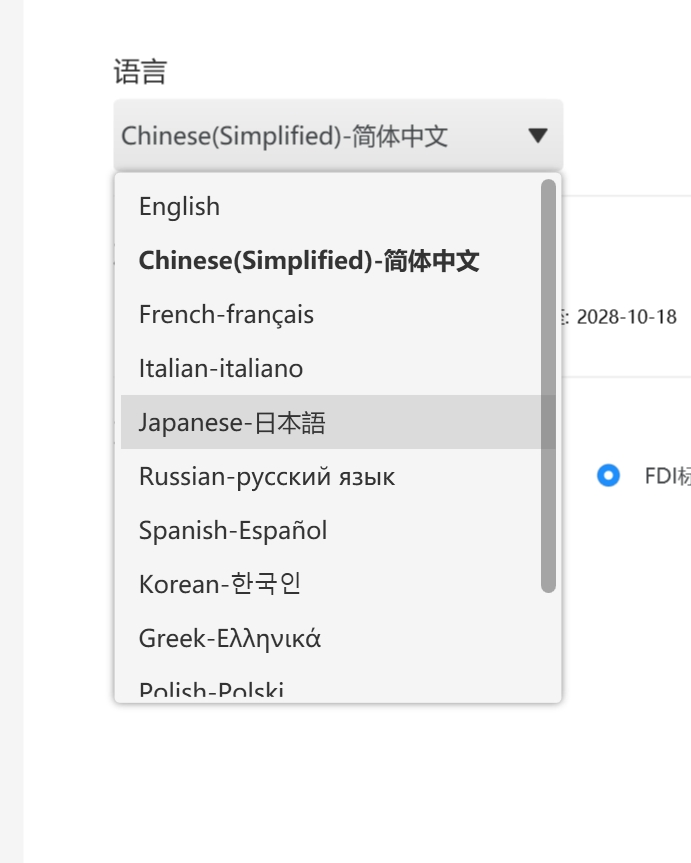

Q: Does the system support multiple languages?
A: Yes, the system includes support for Chinese, English, French, Spanish, Russian, Portuguese, Italian, Greek, Polish, Romanian, Japanese, and Korean.
Q: Is a special calibration required for daily use?
A: No, the YJ-IOS-32 is designed to be calibration-free, simplifying the daily workflow for dental professionals.
