Lab Powder Dust Collector System Ksz-3.0d1

1 / 5

Lab Powder Dust Collector System Ksz-3.0d1

Customization:	Available
Certification:	CE, ISO, EMC
Installation Method:	Vertical

Send Inquiry

Product Description

📋

Basic Information

Model NO.

KSZ-3.0D1

Operation Type

Automatic

Medium Material

Polyester

Collecting Method

Dry

Type

Filter Cartridge Dust Collector

Color

White

Air Flow

2800m3/H

Power

3.0 Kw

Voltage

3X380V 50Hz/3X220V 60 Hz

Filtering Area

20 M2

Cleaning Way

Auto Cleaning

Compressed Air

0.5-0.6 MPa

Suction Arm

DN200 mm

HS Code

8421399000

Capacity

200 Sets Per Month

🛠️

Product Description & Features

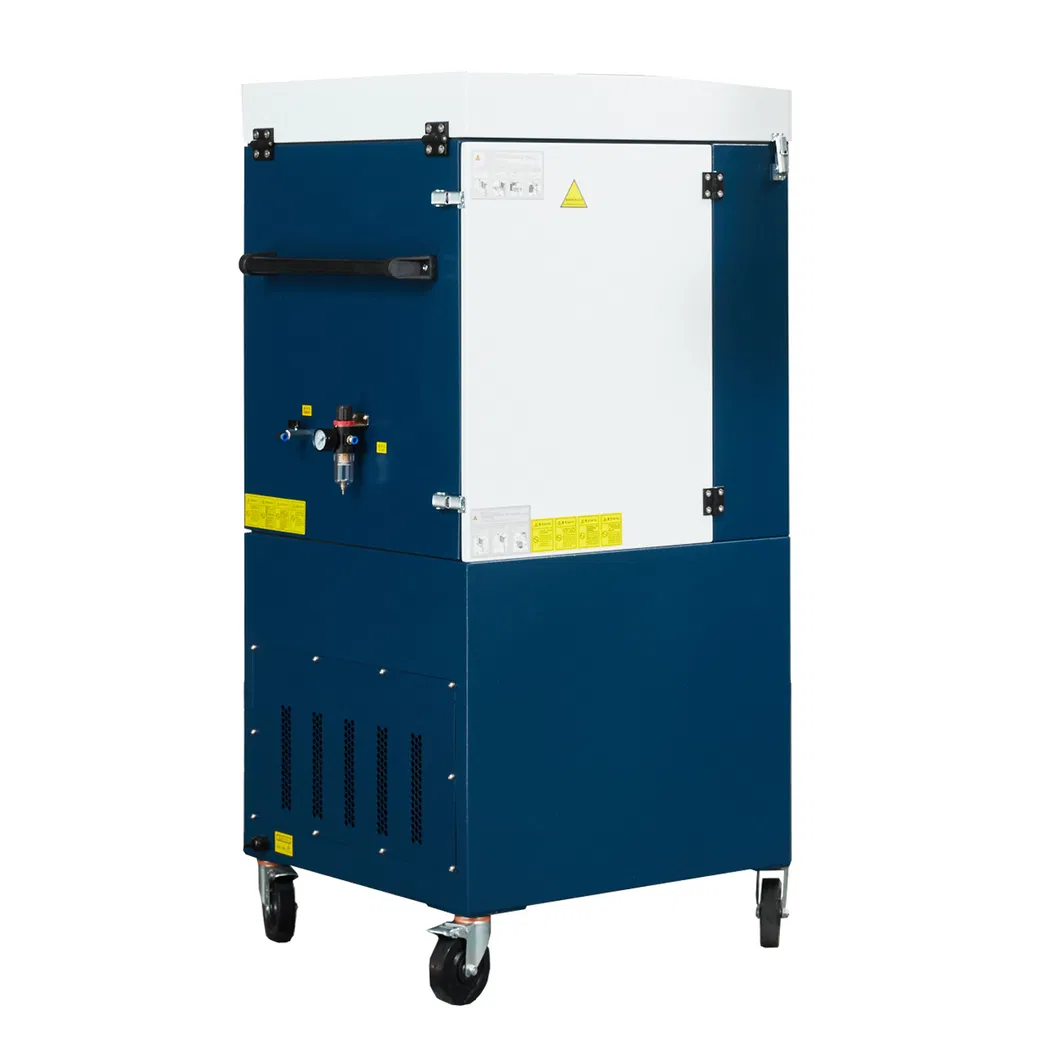

Lab powder dust collector system KSZ-3.0D1

✔
The air purifier applies to all kinds of fume extractor caused by welding, grinding, as well as recycling of rare metals, precious materials, etc.
✔

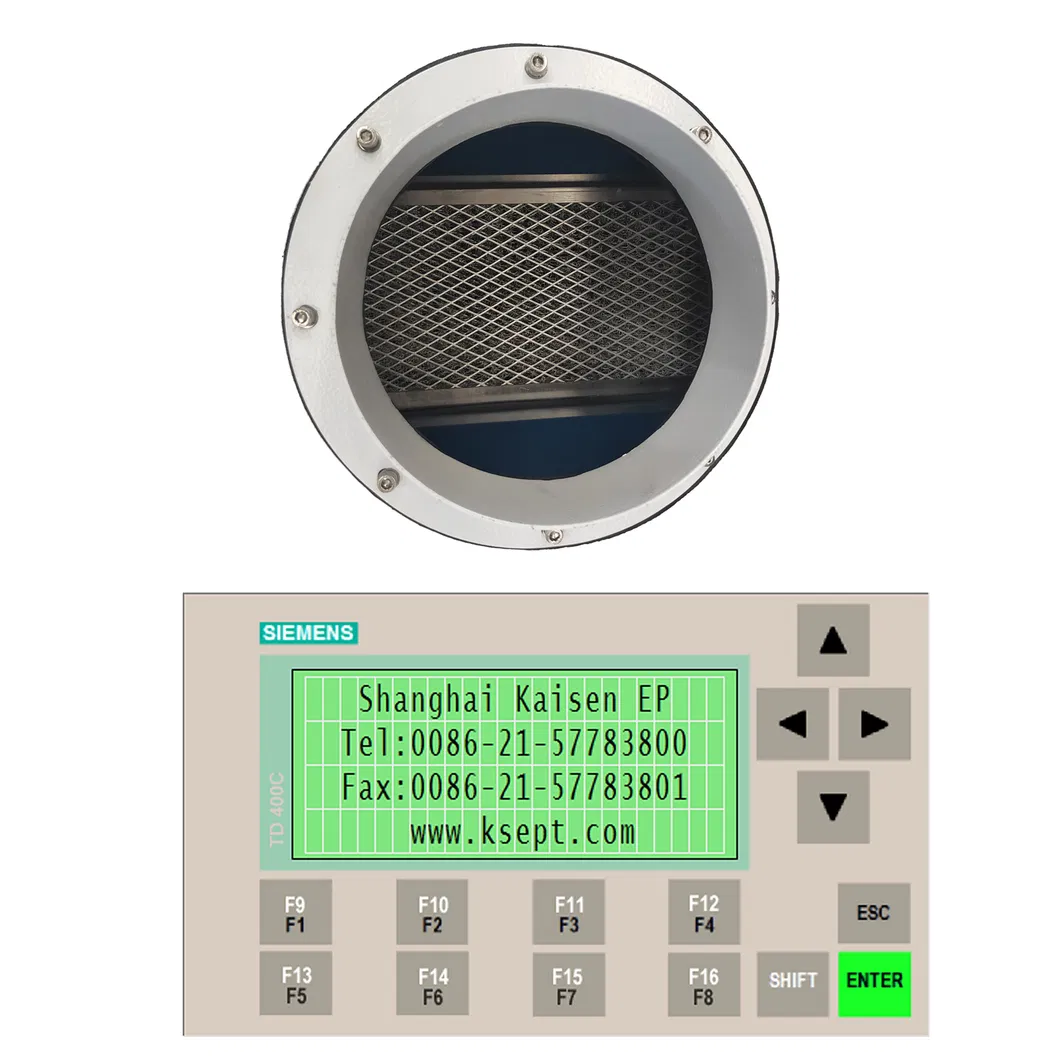

Three protective measures against fire and molten slag: suction hood mesh, top cover stainless steel sintering mesh, and metal plate front filter cartridge for enhanced safety and reliability.
✔
PLC automatic control for easy operation. Features a rotating filter reverse blowing pipe using compressed air for thorough 360-degree surface cleaning.
✔

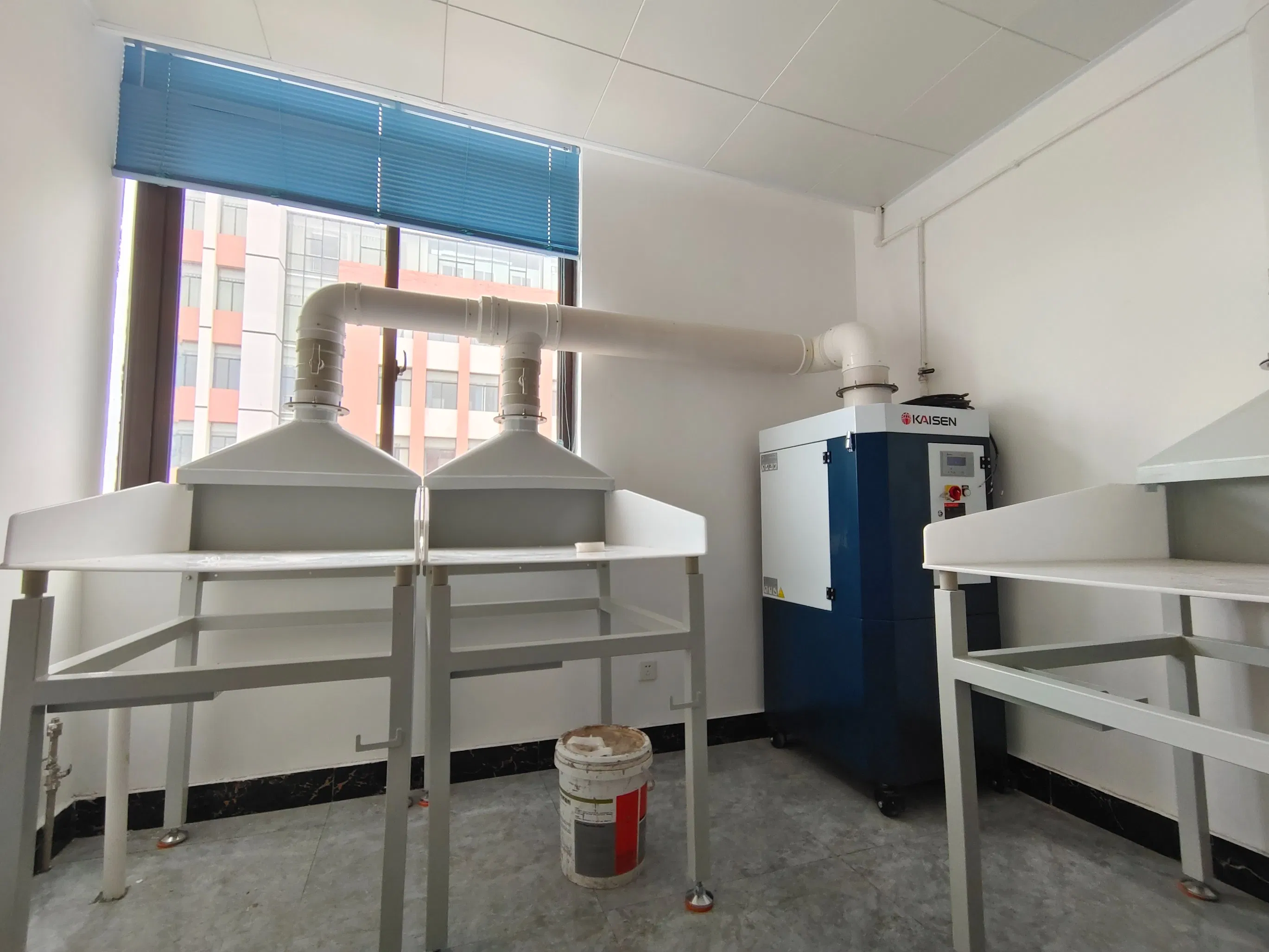

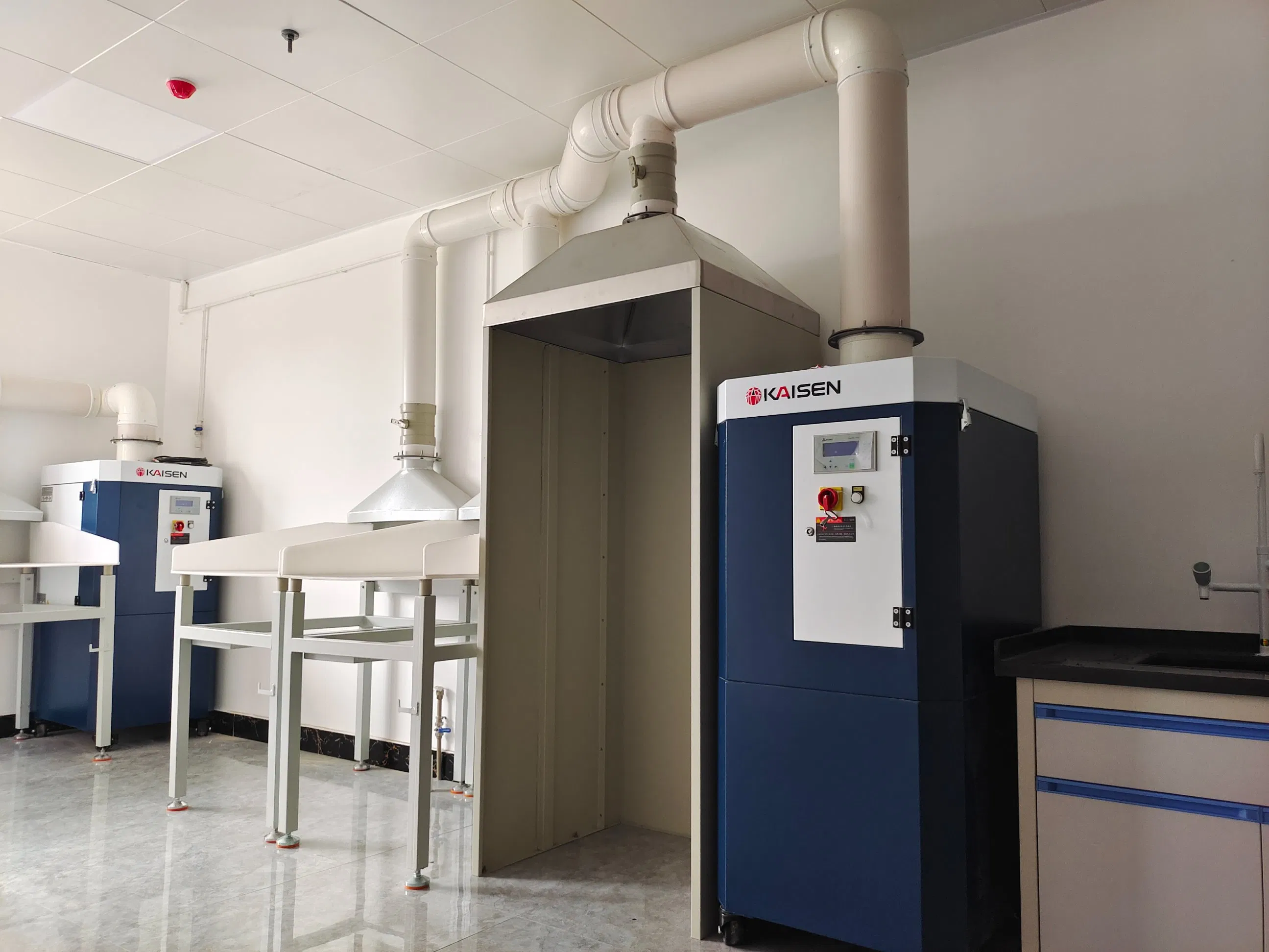

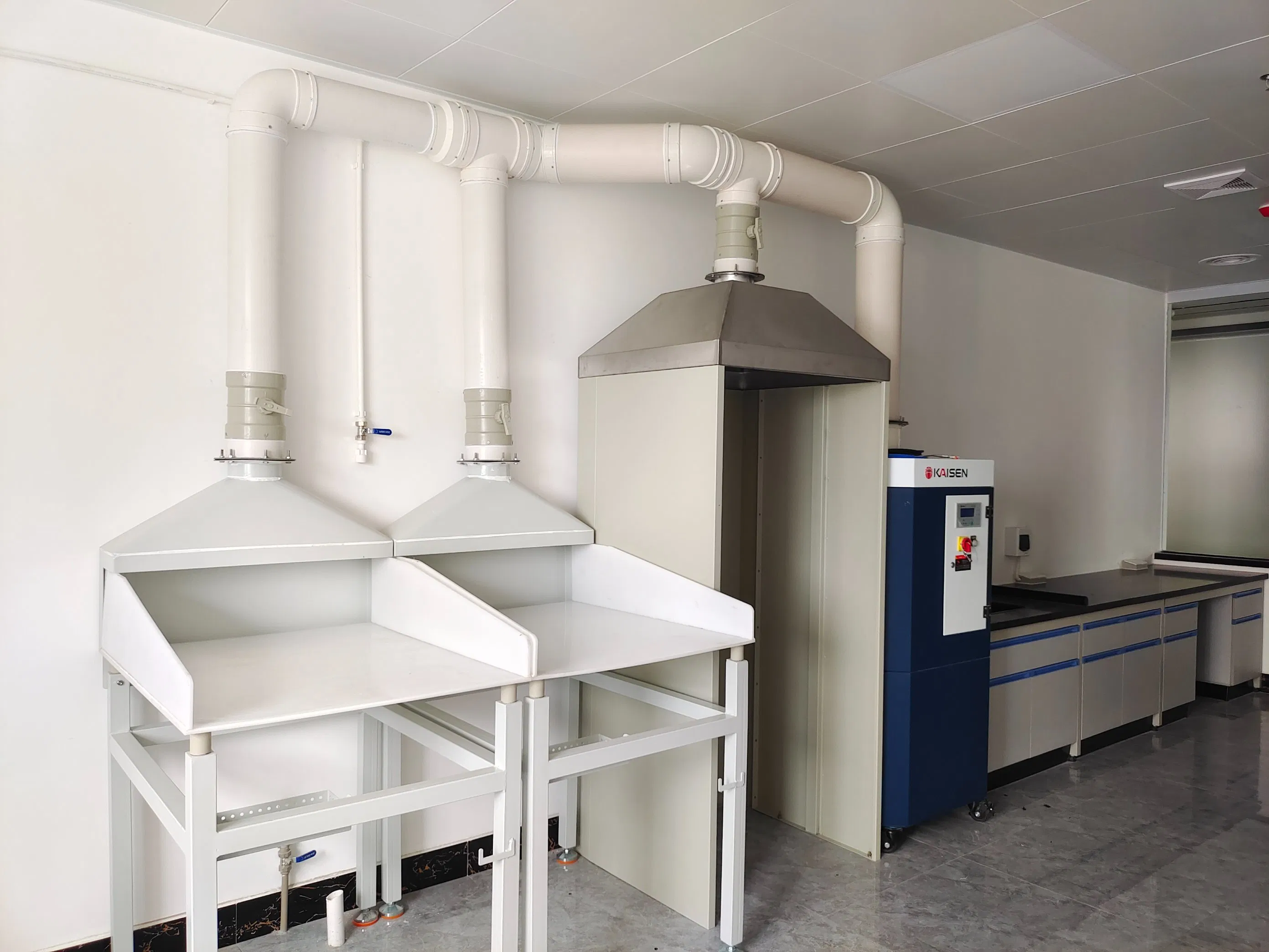

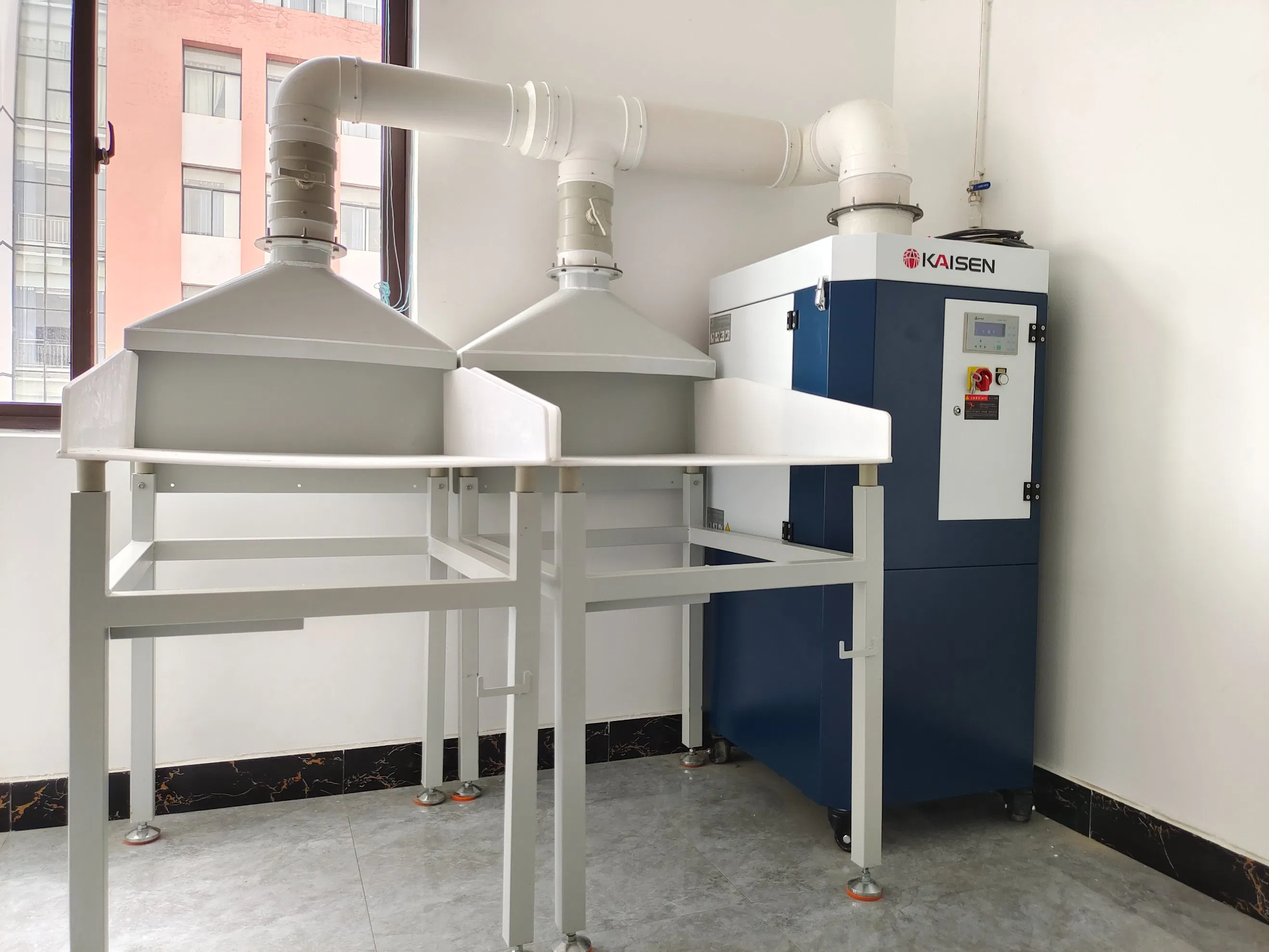

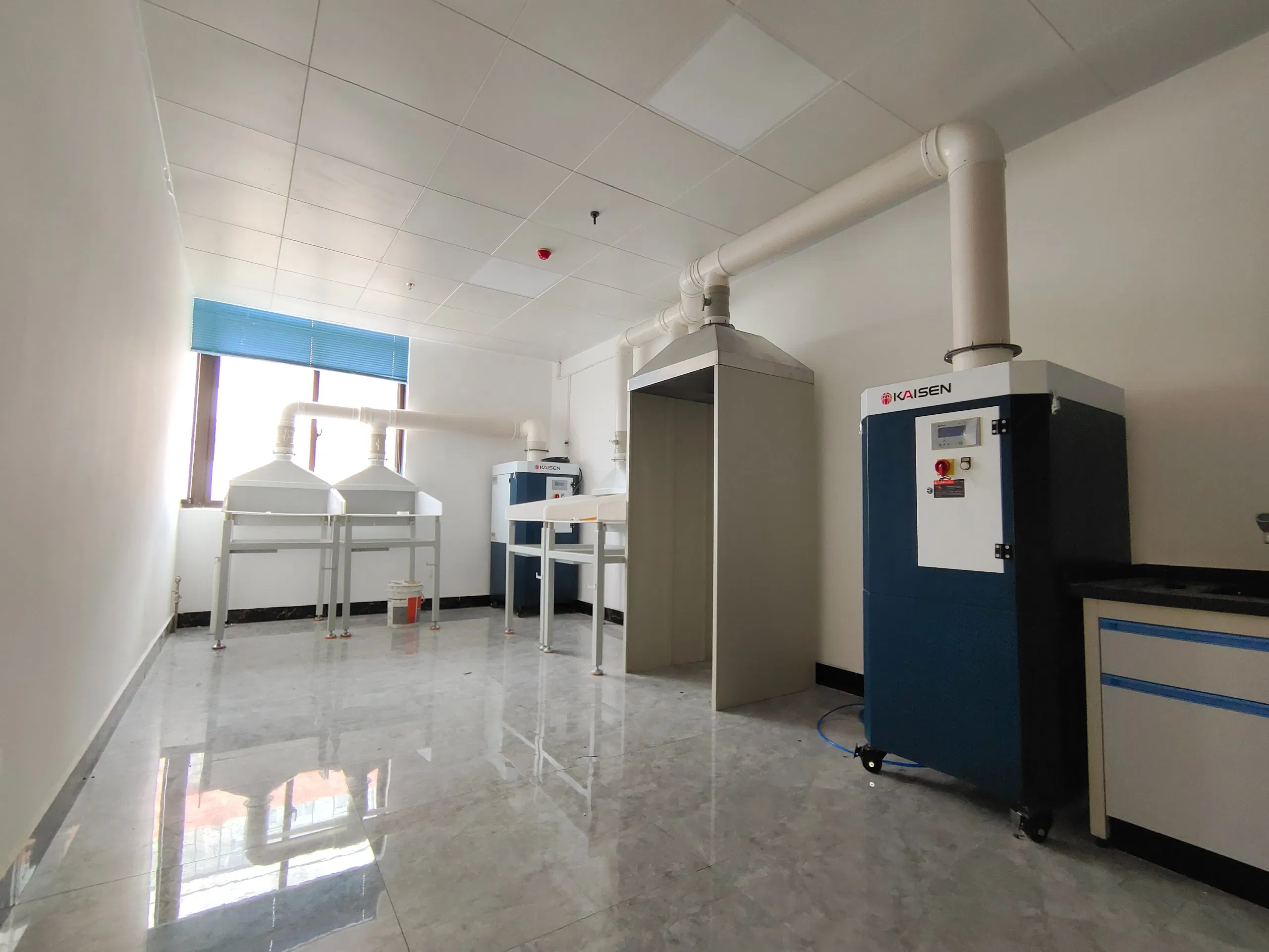

Integrated solution combining KSZ-3.0D1 dust collector, PVC piping, and working table for efficient dust management.

📊

Technical Parameters

Model	KSZ-3.0D1
Air Flow	2800 (m³/h)
Motor Power	3.0 (kw)
Voltage	3x380 V/50 Hz
Filtering Material	Polyester + PTFE
Filtering Area	20 (m²)
Cleaning Method	Automatic Cleaning
Compressed Air	0.5~0.6 (MPa)
Filtration Efficiency	>99.9%
Noise Level	≤74 dB(A)
Dimension	800×800×1633 (mm)
Weight	266±10 (kg)

🖼️

Product Display

❓

Frequently Asked Questions

What is the filtration efficiency of the KSZ-3.0D1?

The system provides a high filtration efficiency of over 99.9%, making it suitable for capturing fine powders and welding fumes.

How does the automatic cleaning system work?

It utilizes a PLC-controlled reverse blowing pipe that rotates inside the filter cartridge using compressed air (0.5-0.6 MPa) for thorough, multi-directional cleaning.

Is the equipment safe against fire hazards?

Yes, it features three protective layers: a suction hood mesh, a stainless steel sintering mesh in the top cover, and a metal plate front filter to block sparks and molten slag.

What applications is this dust collector suitable for?

It is ideal for laboratory powder collection, welding fume extraction, grinding dust, and the recycling of precious materials or rare metals.

What are the noise levels during operation?

The system operates at a low noise level of ≤74 dB(A), ensuring a comfortable working environment.

What material is used for the filter?

The filter uses a high-quality Polyester + PTFE material, providing a large filtering area of 20 square meters.
