Basic Specifications
Medium Material
Polyester
Dust Collecting
Dry Method
Type

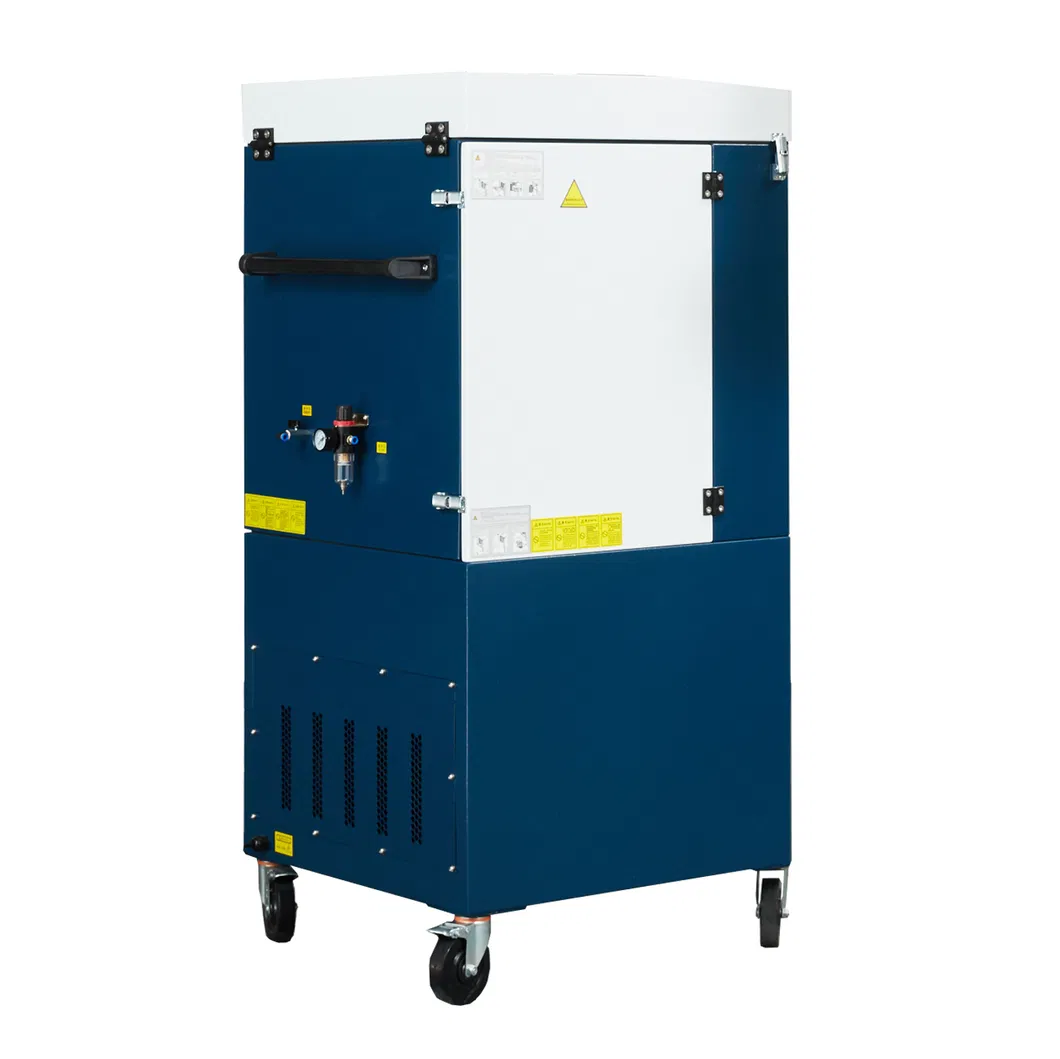

Filter Cartridge Dust Collector
Voltage
3X380V 50Hz/3X220V 60 Hz
Cleaning Way
Auto Cleaning
Compressed Air
0.5-0.6 MPa
Specification
800x800x1633mm
⚙
Key Features
1
The air purifier applies to all kinds of fume extractor caused by welding, grinding, as well as recycling of rare metals, precious materials, etc.
2

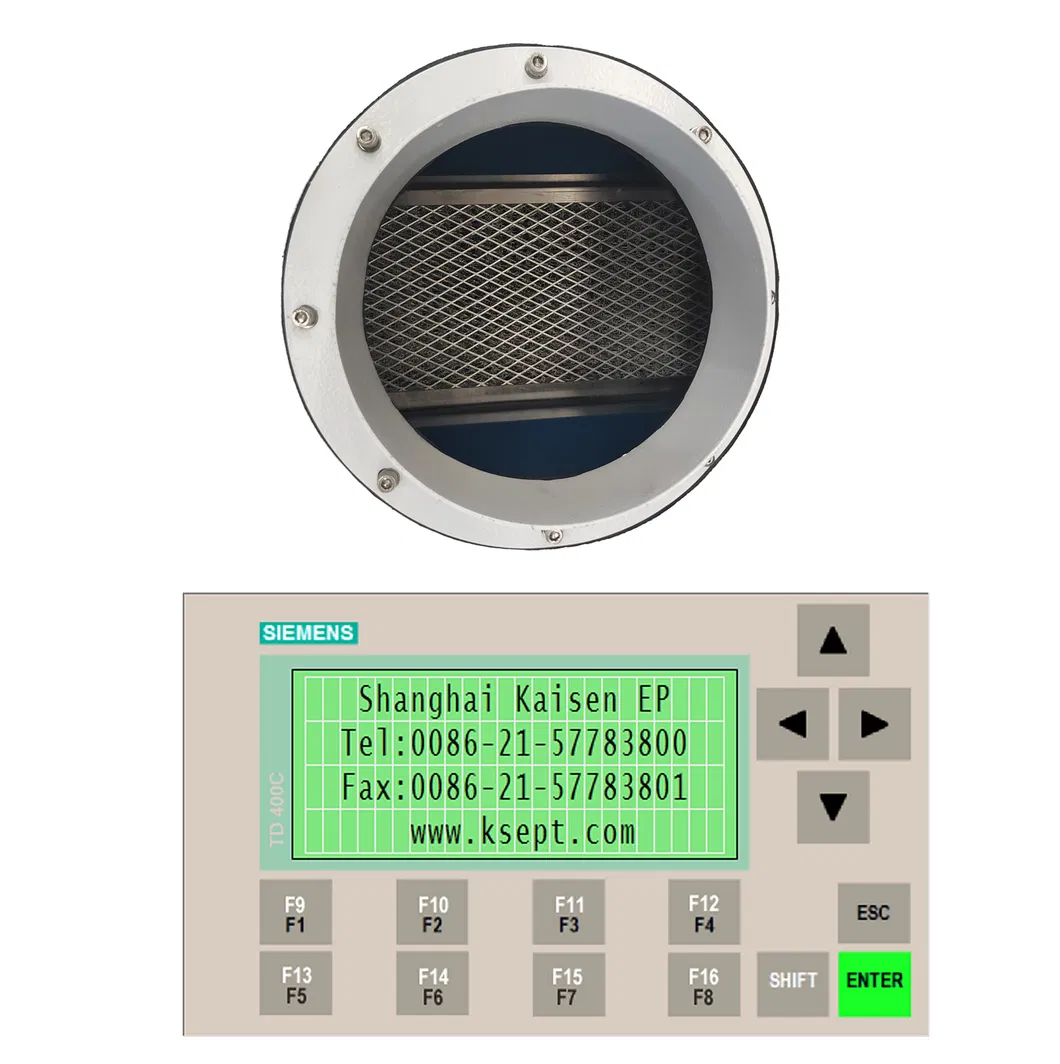

Advanced safety: three protective measures are used inside (suction hood mesh, top cover stainless steel sintering mesh, and metal plate front filter cartridge) to handle fire potential and molten slag particles, ensuring longer life and reliability.
3
PLC automatic control: Includes a filter reverse blowing pipe that rotates inside the filter cartridge using compressed air for thorough automatic cleaning in all directions.
4

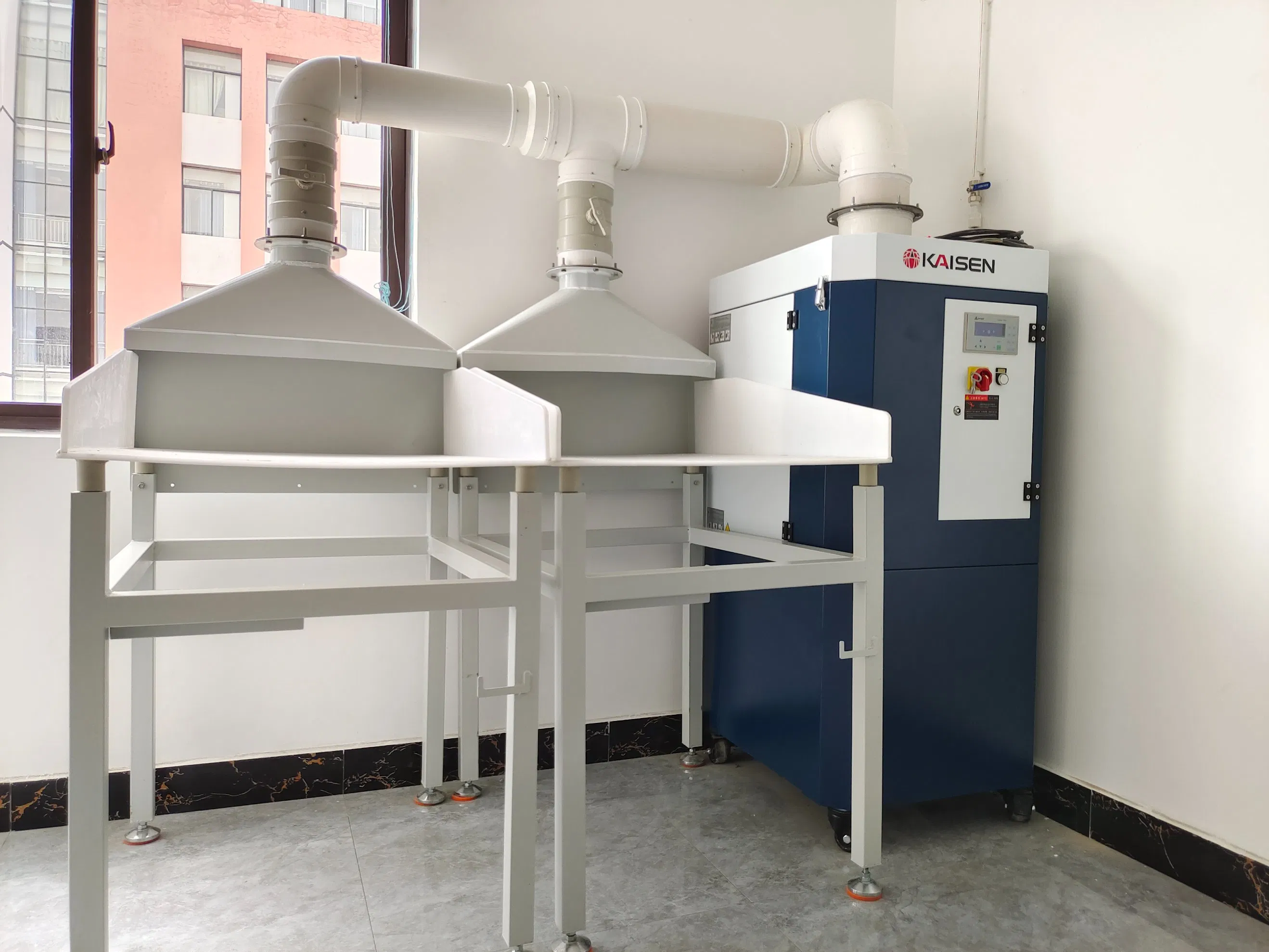

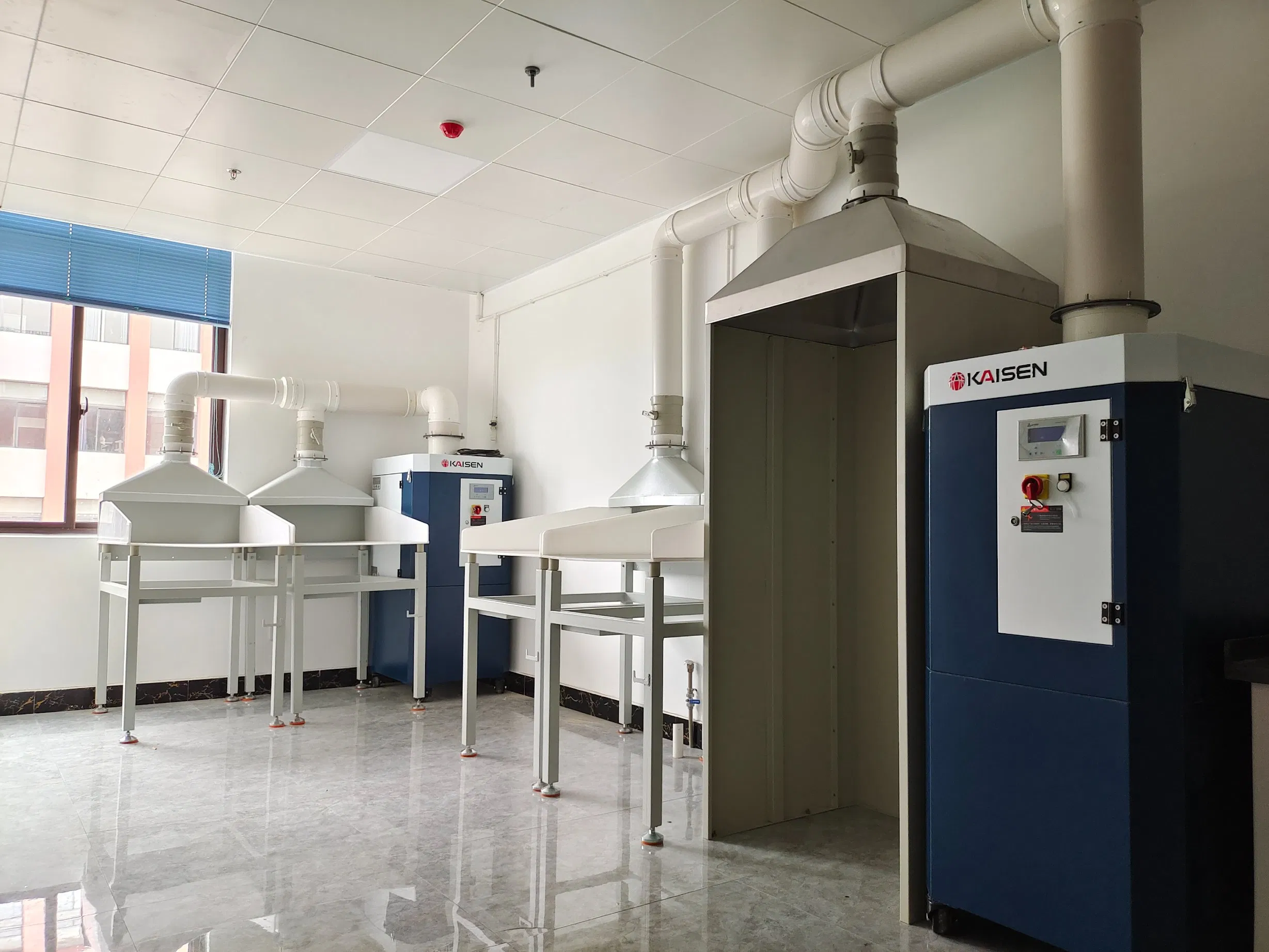

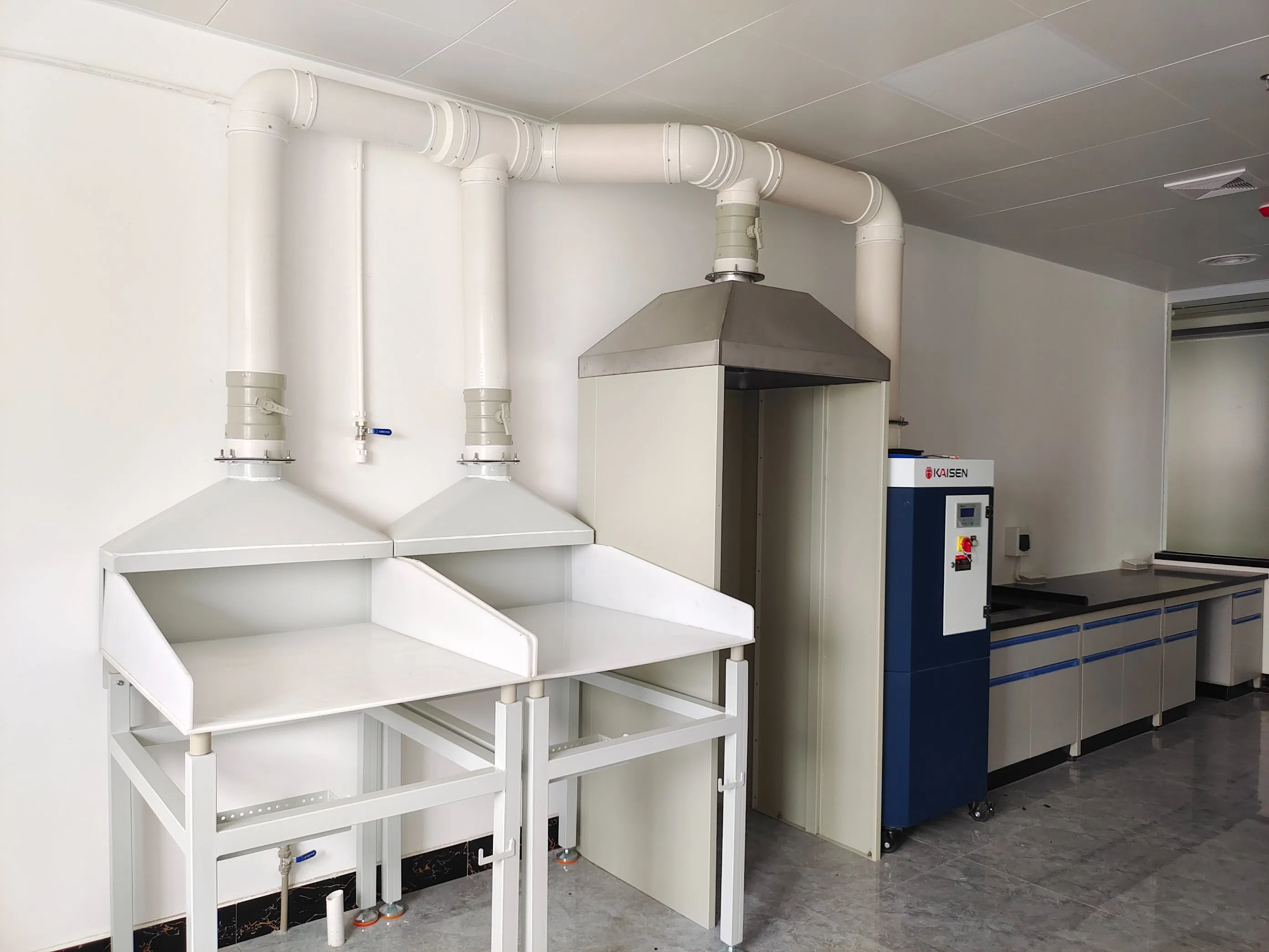

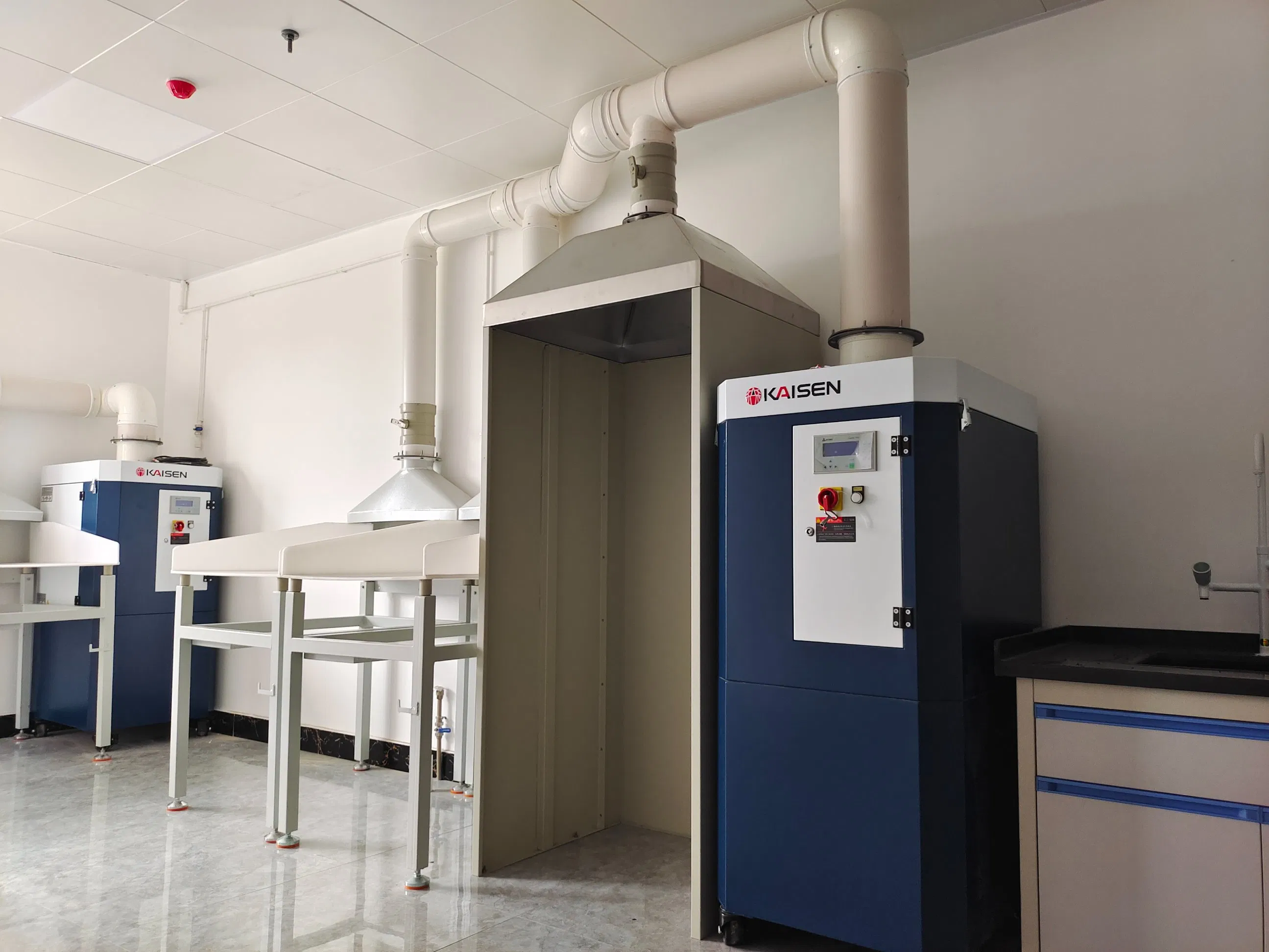

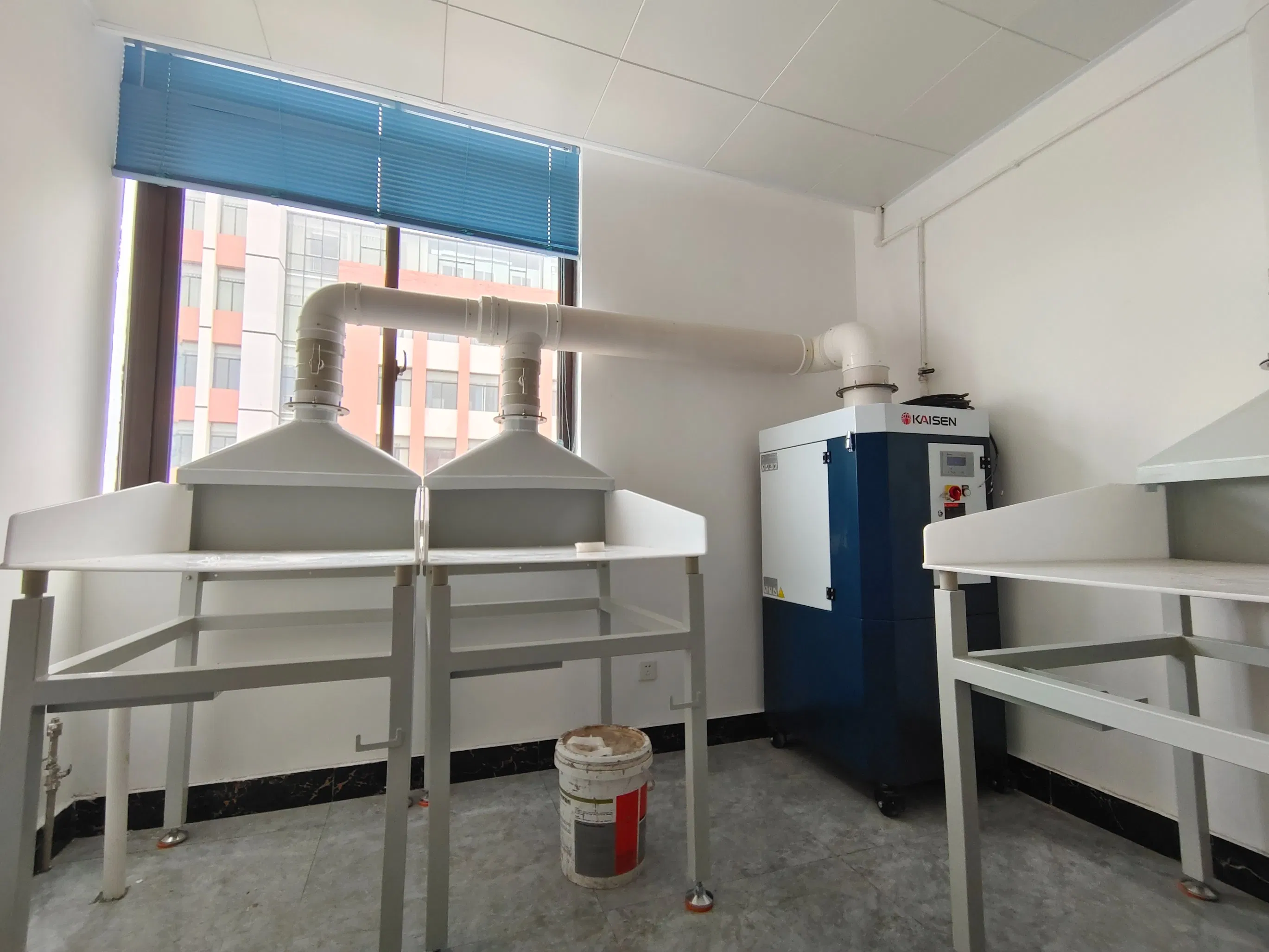

Comprehensive solution: The KSZ-3.0D1 dust collector combined with PVC piping and a working table provides an efficient workspace solution.
📋
Technical Parameters
| Parameter |
Specification (KSZ-3.0D1) |
| Air Flow |
2800 (m³/h) |
| Motor Power |
3.0 (kw) |
| Voltage |
3x380 V/50 Hz |
| Filtering Material |
Polyester + PTFE |
| Filtering Area |
20 (m²) |
| Cleaning Method |
Automatic Cleaning |
| Compressed Air |
0.5~0.6 (MPa) |
| Filtration Efficiency |
>99.9% |
| Noise Level |
≤74 dB(A) |
| Dimensions |
800×800×1633 (mm) |
| Weight |
266±10 (kg) |
?
Frequently Asked Questions
What applications is this dust collector suitable for?
It is designed for laboratory powder collection, welding fume extraction, grinding dust, and the recycling of rare metals and precious materials.
How does the automatic cleaning system work?
The system uses PLC control and compressed air. A reverse blowing pipe rotates inside the filter cartridge to clean the surface automatically in all directions.
What is the filtration efficiency of the KSZ-3.0D1?
The equipment features a high filtration efficiency of over 99.9% thanks to its Polyester + PTFE filtering material.
Are there safety features for handling hot particles?
Yes, it includes three protective measures: a suction hood mesh, a stainless steel sintering mesh on the top cover, and a metal plate front filter to mitigate fire risks from molten slag.
What is the noise level during operation?
The equipment operates at a relatively low noise level of ≤74 dB(A), making it suitable for laboratory and industrial environments.
What power supply is required?
The standard model requires 3x380V 50Hz, but it is also compatible with 3x220V 60Hz systems.
