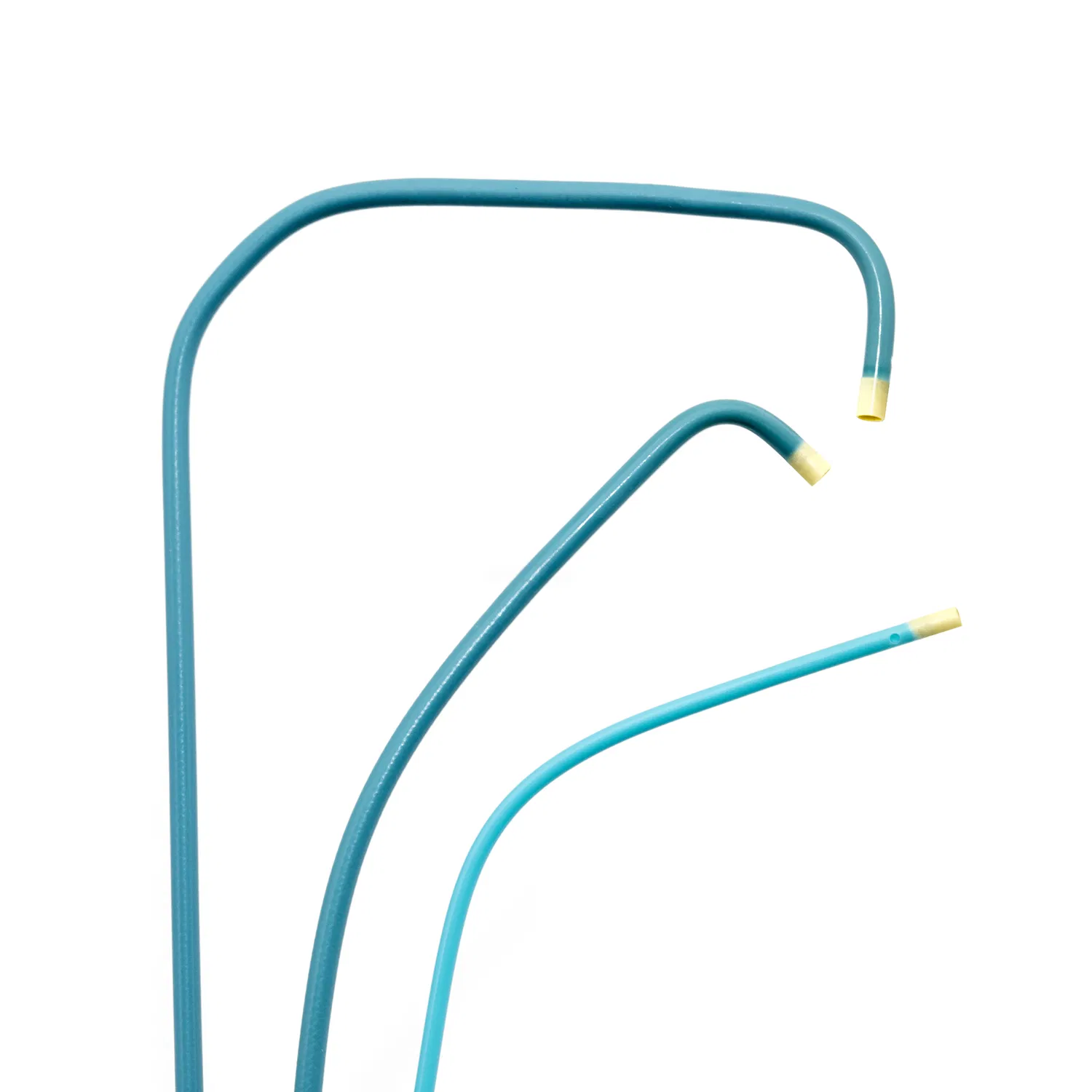

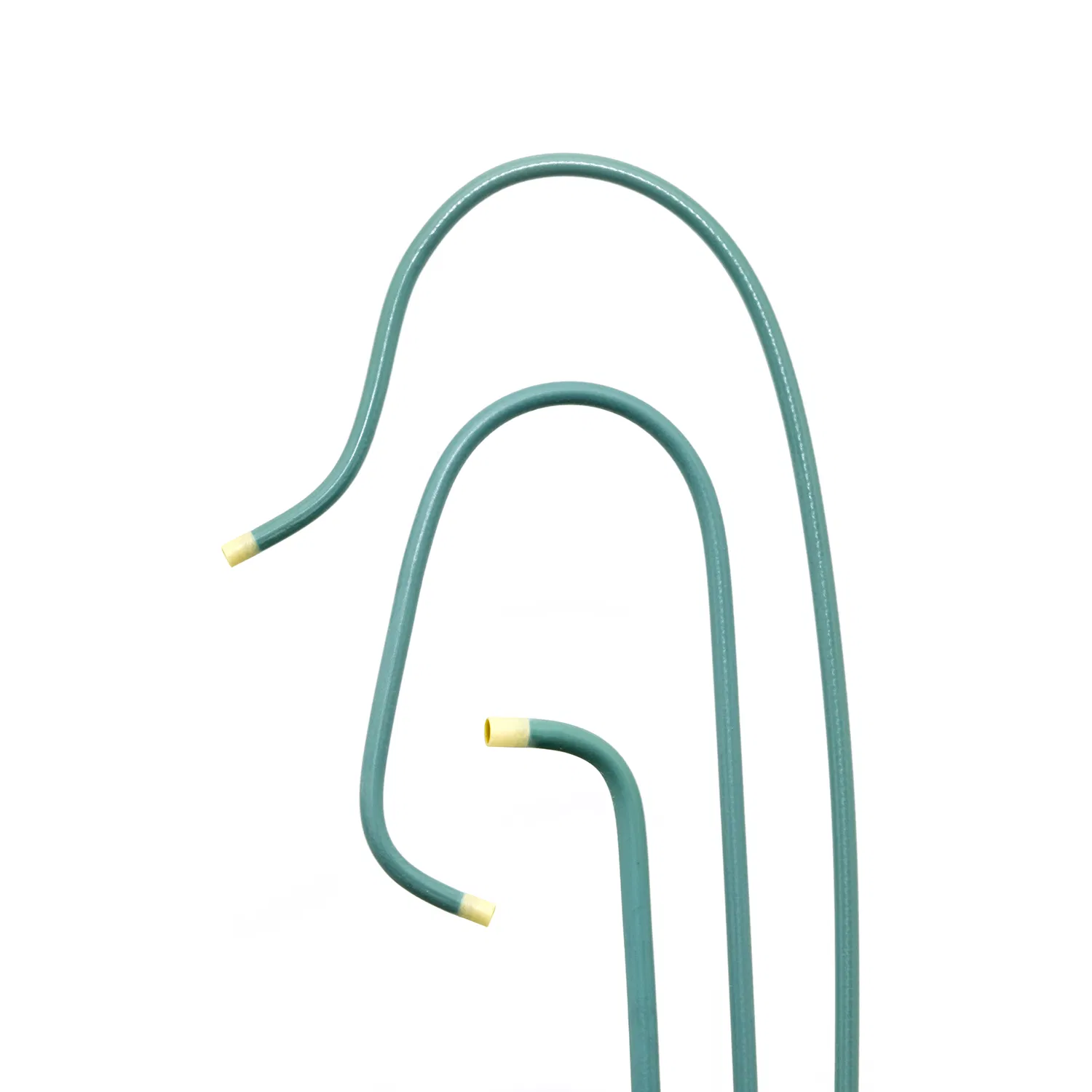

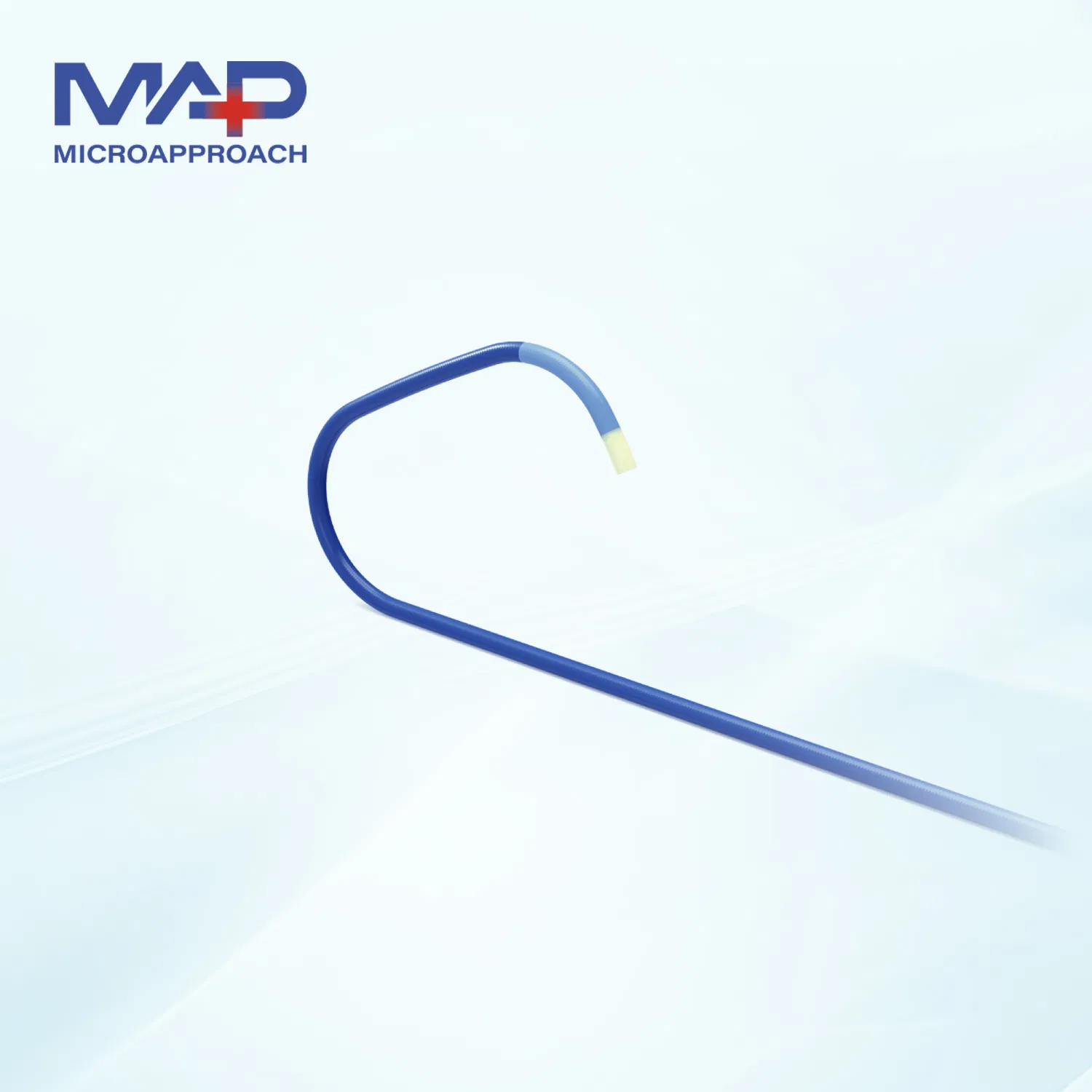

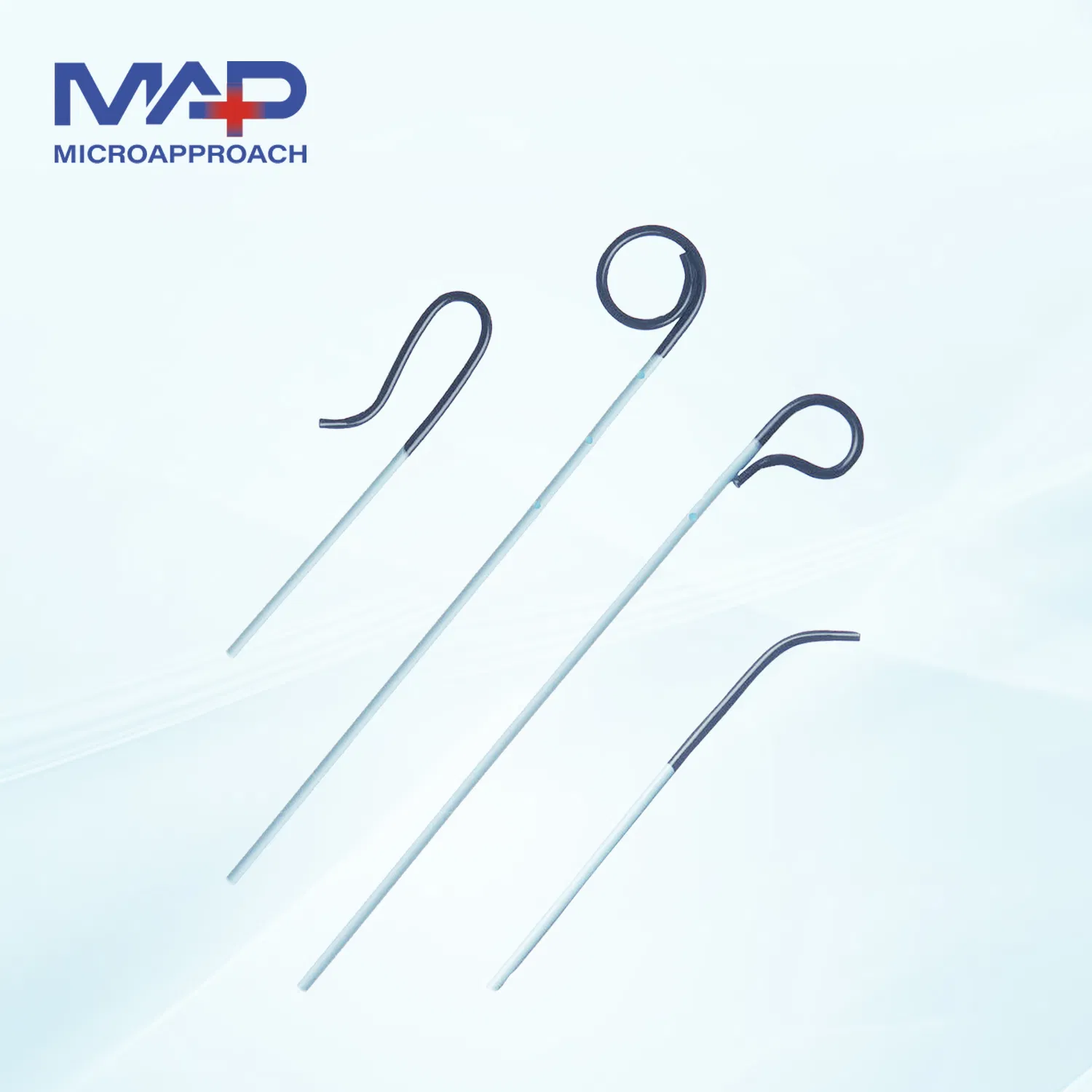

The angiographic catheter is a precision tool used to examine coronary arteries. It is inserted through a small incision in the groin or arm to reach the heart, and then passed through the coronary artery. The catheter is equipped with a tiny balloon on its tip, which is inflated to block blood flow through the artery so that an image of its interior can be captured by X-ray.
| Terminal Configuration | Models | Nominal Outer Diameter (Fr/mm) | Internal Diameter (mm) | Effective Length (cm) |
|---|---|---|---|---|
| Hepatic Artery (RH) | RH630-4.2-80 / RH630-5-80 | 4.2/1.4 - 5/1.7 | 1.0 - 1.03 | 80 |
| Simmons Tube (SM) | SM510/511/512 Series | 4.2/1.4 - 5/1.7 | 1.0 - 1.03 | 100 |
| Hunter Head (HH) | HH371-4.2-100 / HH371-5-100 | 4.2/1.4 - 5/1.7 | 1.0 - 1.03 | 100 |
| Renal Artery (HS) | HS640/641 Series | 4.2/1.4 - 5/1.7 | 1.0 - 1.03 | 80 |
| Cobra Tube (CB) | CB230/231/232 Series | 4.2/1.4 - 5/1.7 | 1.0 - 1.03 | 80 |
| Single Bend (RC) | RC620/621/622 Series | 4.2/1.4 - 5/1.7 | 1.0 - 1.03 | 80 |
| Multifunctional (MPA) | MPA35 / MPA280 / MPA281 | 4.2/1.4 - 5/1.7 | 1.0 - 1.03 | 100/110 |
| Vertebral Artery (AN) | AN-4.2-100 / AN-5-100 | 4.2/1.4 - 5/1.7 | 1.0 - 1.03 | 100 |
