| Model NO. | Rapid Temperature Test Chamber | Temperature Uniformity | <+2°C (No Load) |
|---|---|---|---|
| Temperature Fluctuation | <±0.5°C (No Load) | Heating Rate | <±0.5°C (No Load) |
| Transport Package | Sturdy Wooden Case | Specification | Customize |
| Origin | Shanghai, China | Production Capacity | 150 Sets Per Month |

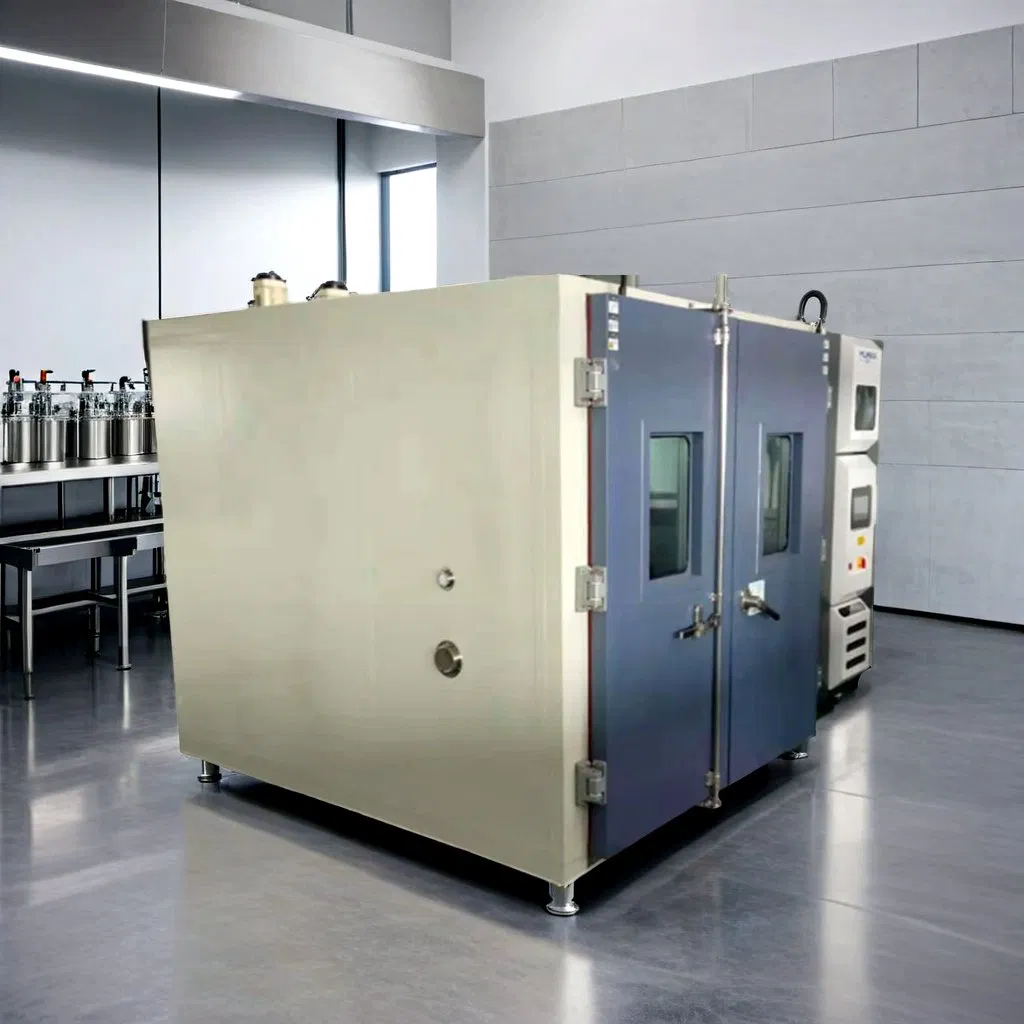

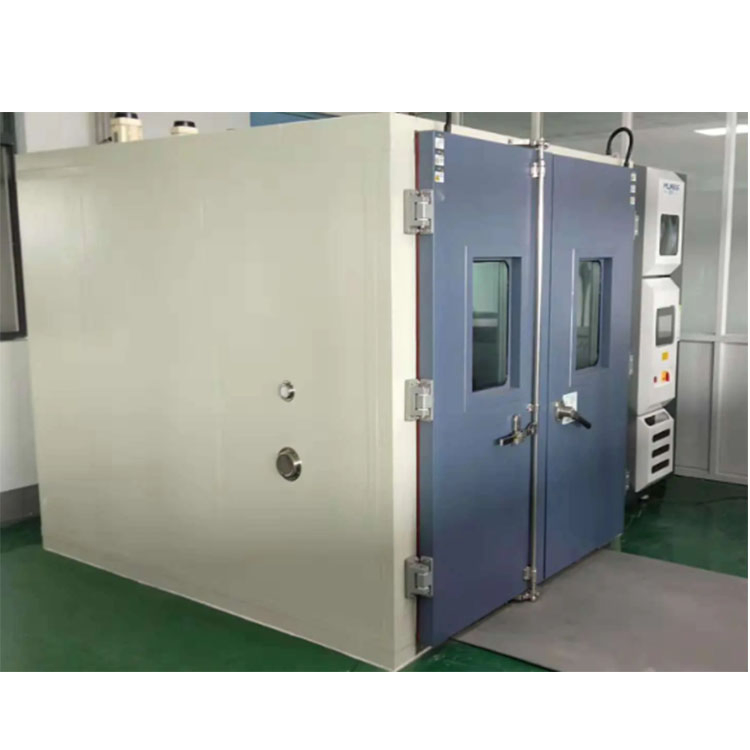

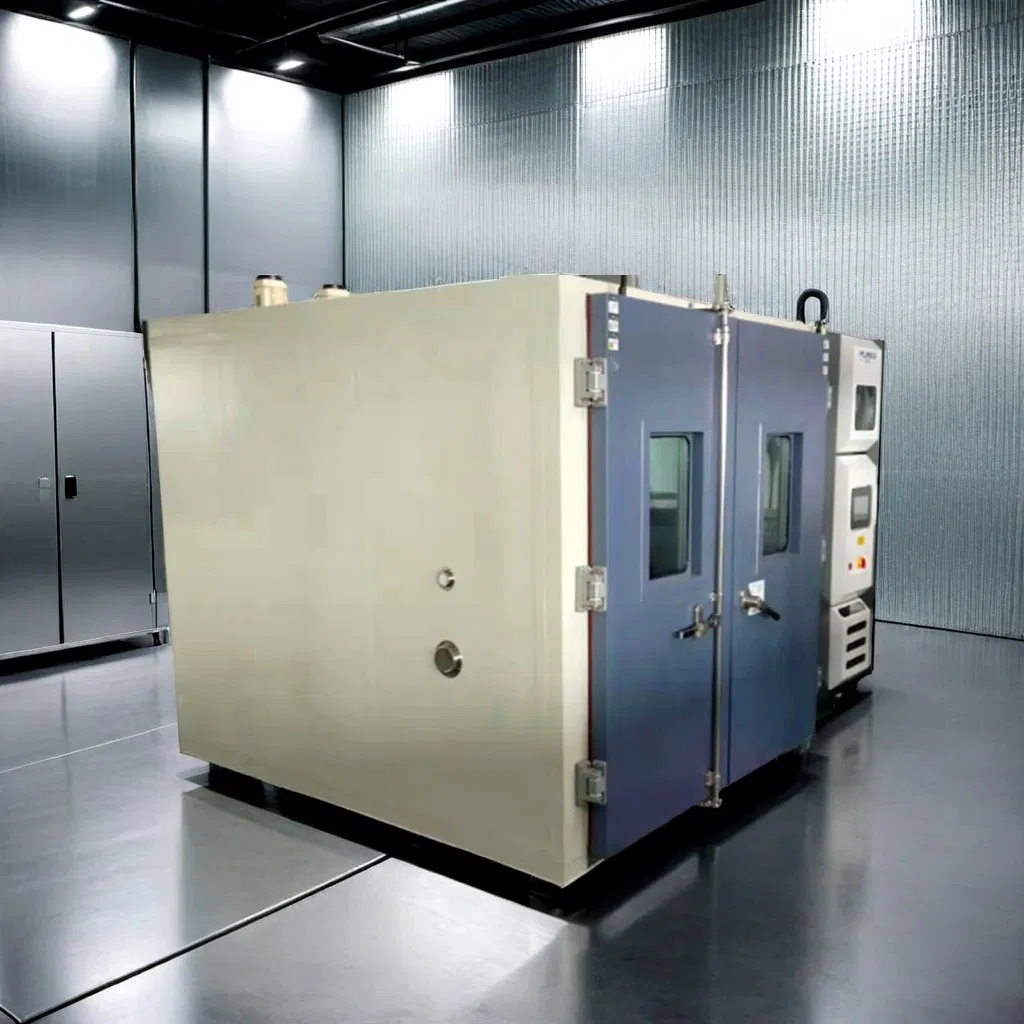

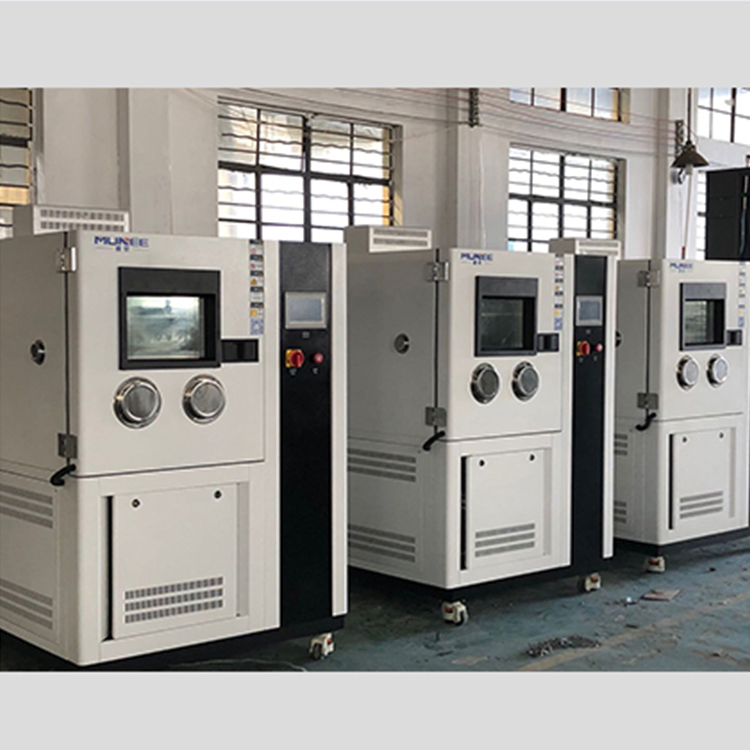

A large-scale environmental simulation device with the ability to rapidly change temperature, its core function is to precisely control the temperature within the test space (some models can also include humidity control), to simulate extreme temperature changes or periodic temperature fluctuations.
It is used for rapid temperature variation reliability tests on small and medium-sized complete machines, large components, or multiple sample combinations, to evaluate their performance stability, structural integrity and service life under drastic temperature changes. It is widely applied in the fields of electronics and electrical appliances, automotive industry, aerospace, and communication.
| Model | FTP150 | FTP280 | FTP500 | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Temp Range | -20℃~150℃ | -40℃~150℃ | -70℃~150℃ | -20℃~150℃ | -40℃~150℃ | -70℃~150℃ | -20℃~150℃ | -40℃~150℃ | |
| Total Power | 14.5KW | 15.5KW | 16KW | 16KW | 16.5KW | 17.5KW | 17KW | 18KW | |
| Heating/Cooling | Average 5 ℃~20 ℃ per minute (adjustable) | ||||||||
| Temperature Uniformity | ≤±2°C (No Load) | Temperature Fluctuation | ≤±0.5°C (No Load) |
|---|---|---|---|
| Heating Rate | ≤±0.5°C (No Load) | Cooling Rate | 0.7-1°C/min (No Load) |
| Humidity Range | 30%~98% (No Load) | Humidity Uniformity | ≤±3%R.H. (>75%RH) |
| Equipment Noise | ≤60 dB | Standard Config | Glass viewport, 2 racks, 50mm lead hole |
* All data is measured under no-load conditions at an ambient temperature of 25°C.

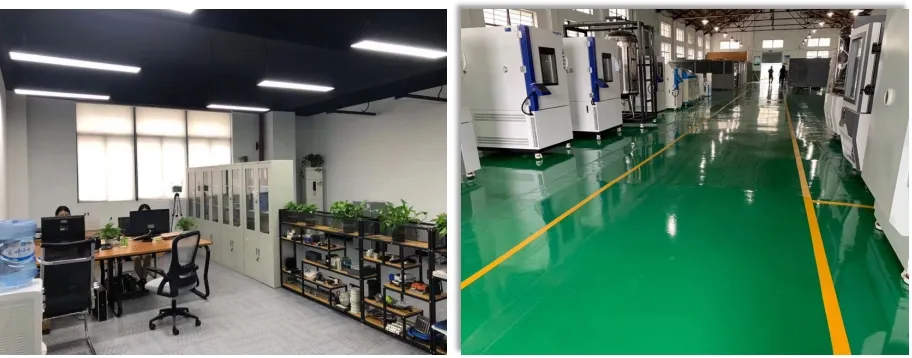

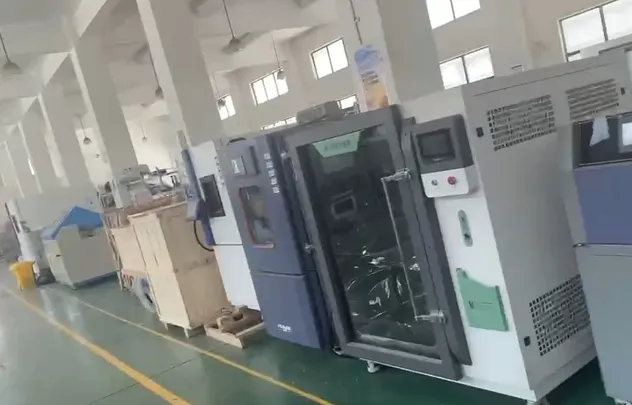

We are a national high-tech enterprise integrating R&D, production, marketing and service of environmental test equipment. We provide customers with comprehensive solutions for environmental test equipment in an all-round way.
Our operation includes specialized divisions such as the VOC environmental cabin division and a dedicated design and research institute, ensuring cutting-edge technology and reliable testing standards across the country.
