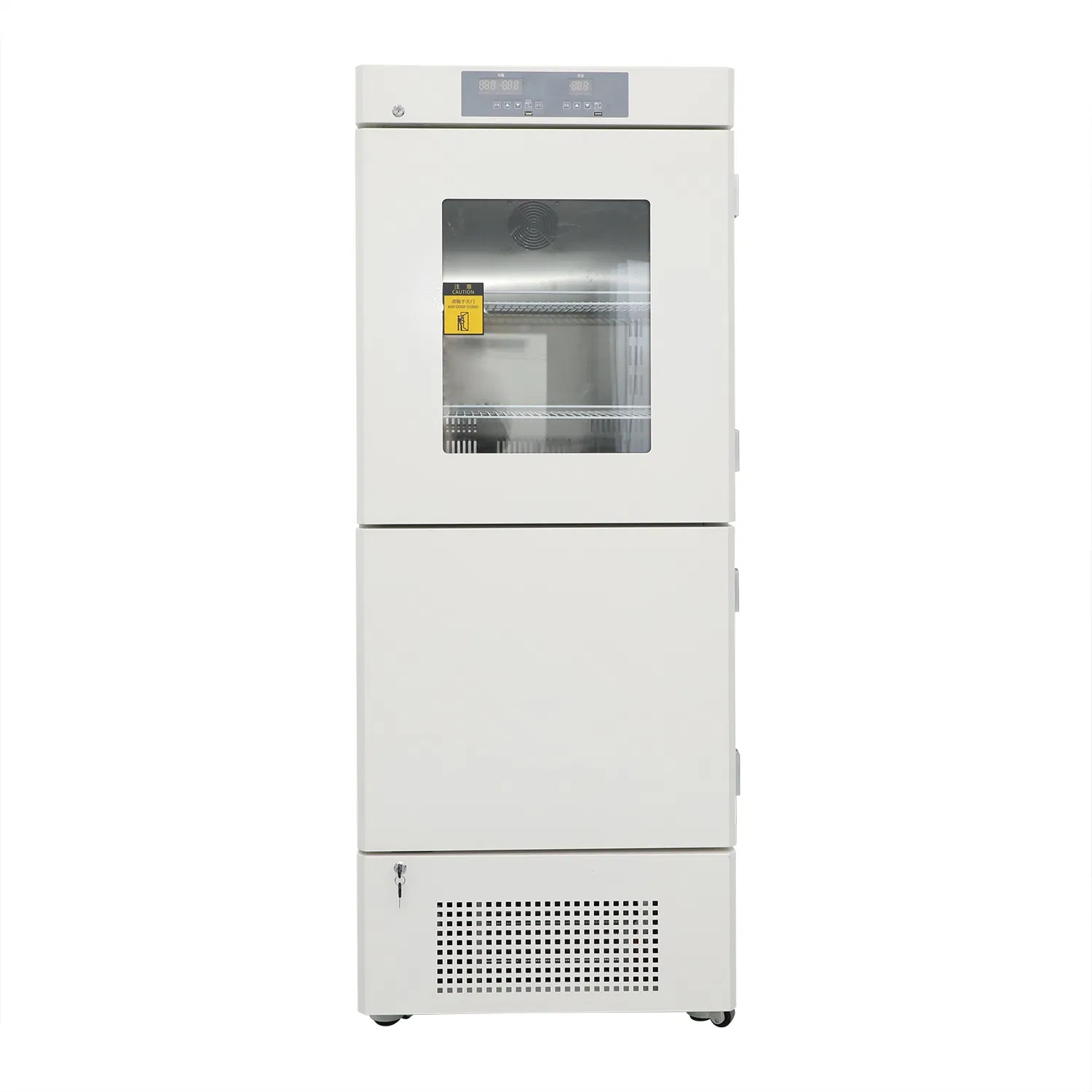

Zmade Ycd-328 Double Door Medical Pharmacy Freezer Refrigerator Combined Laboratory
Zmade Ycd-328 Double Door Medical Pharmacy Freezer Refrigerator Combined Laboratory
Zmade Ycd-328 Double Door Medical Pharmacy Freezer Refrigerator Combined Laboratory
Zmade Ycd-328 Double Door Medical Pharmacy Freezer Refrigerator Combined Laboratory
Zmade Ycd-328 Double Door Medical Pharmacy Freezer Refrigerator Combined Laboratory
1 / 5
Zmade Ycd-328 Double Door Medical Pharmacy Freezer Refrigerator Combined Laboratory
Zmade Ycd-328 Double Door Medical Pharmacy Freezer Refrigerator Combined Laboratory
Zmade Ycd-328 Double Door Medical Pharmacy Freezer Refrigerator Combined Laboratory
Zmade Ycd-328 Double Door Medical Pharmacy Freezer Refrigerator Combined Laboratory
Zmade Ycd-328 Double Door Medical Pharmacy Freezer Refrigerator Combined Laboratory

Zmade Ycd-328 Double Door Medical Pharmacy Freezer Refrigerator Combined Laboratory

Customization: Available
Customized: Customized
Certification: ISO13485
Send Inquiry

Product Description

Basic Information
Model NO.
YCD-328
Scale
Medium
Type
Cryobiology Cooling Device
Volume
328L
Power
300W
Net Weight
132kg
Specification
318L
Trademark
ZMADE
Origin
China
HS Code
8418401000
Product Overview
Medical Freezer
Low Temperature Freezer
Laboratory Refrigerator
Pharmacy Freezer
Medical Equipment
Biological Storage

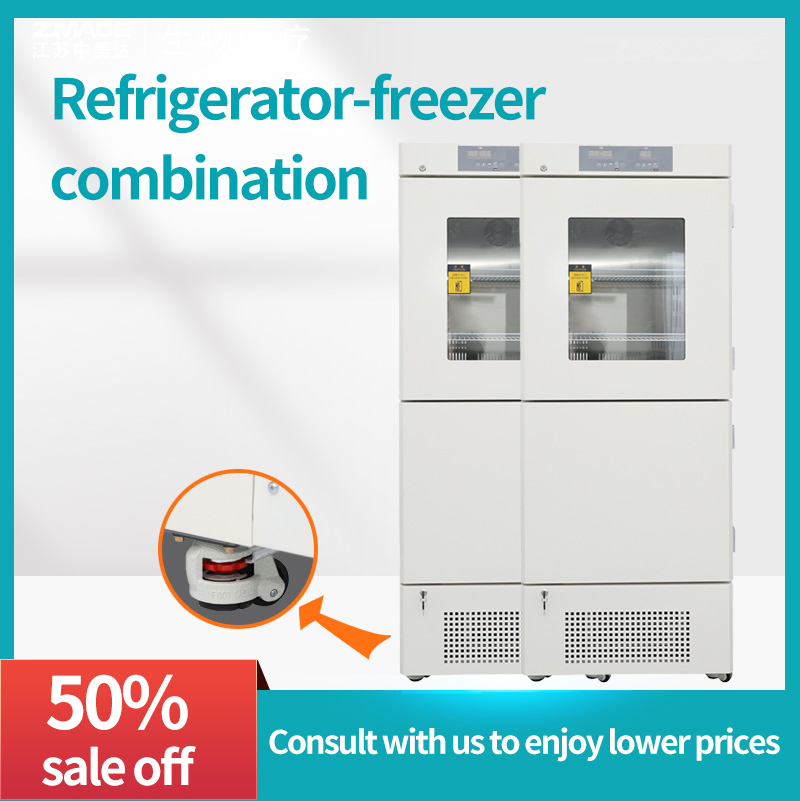

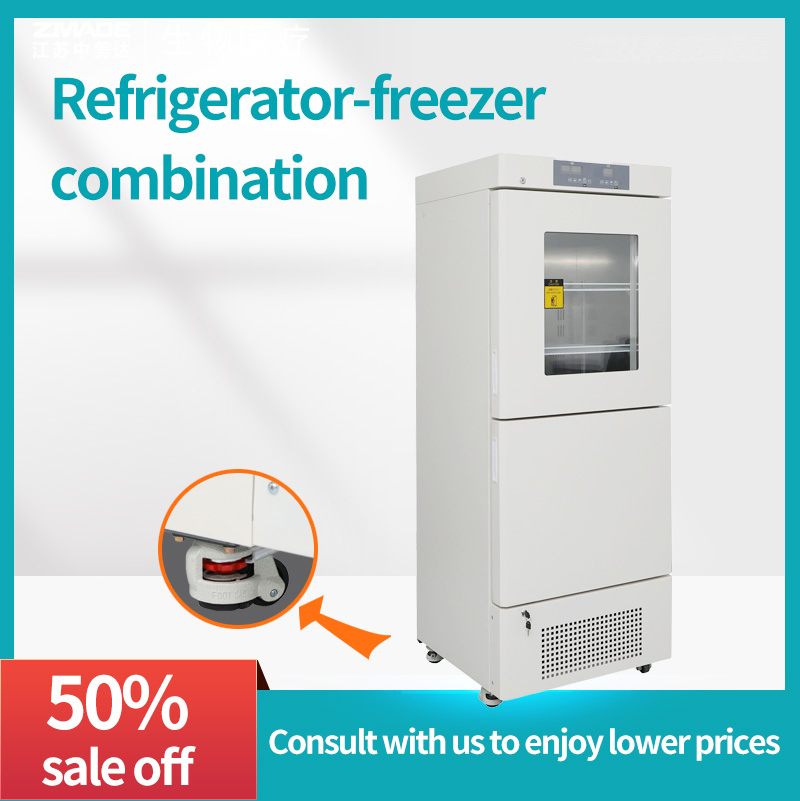

Combined Freezer Refrigerator
Product Description & Features

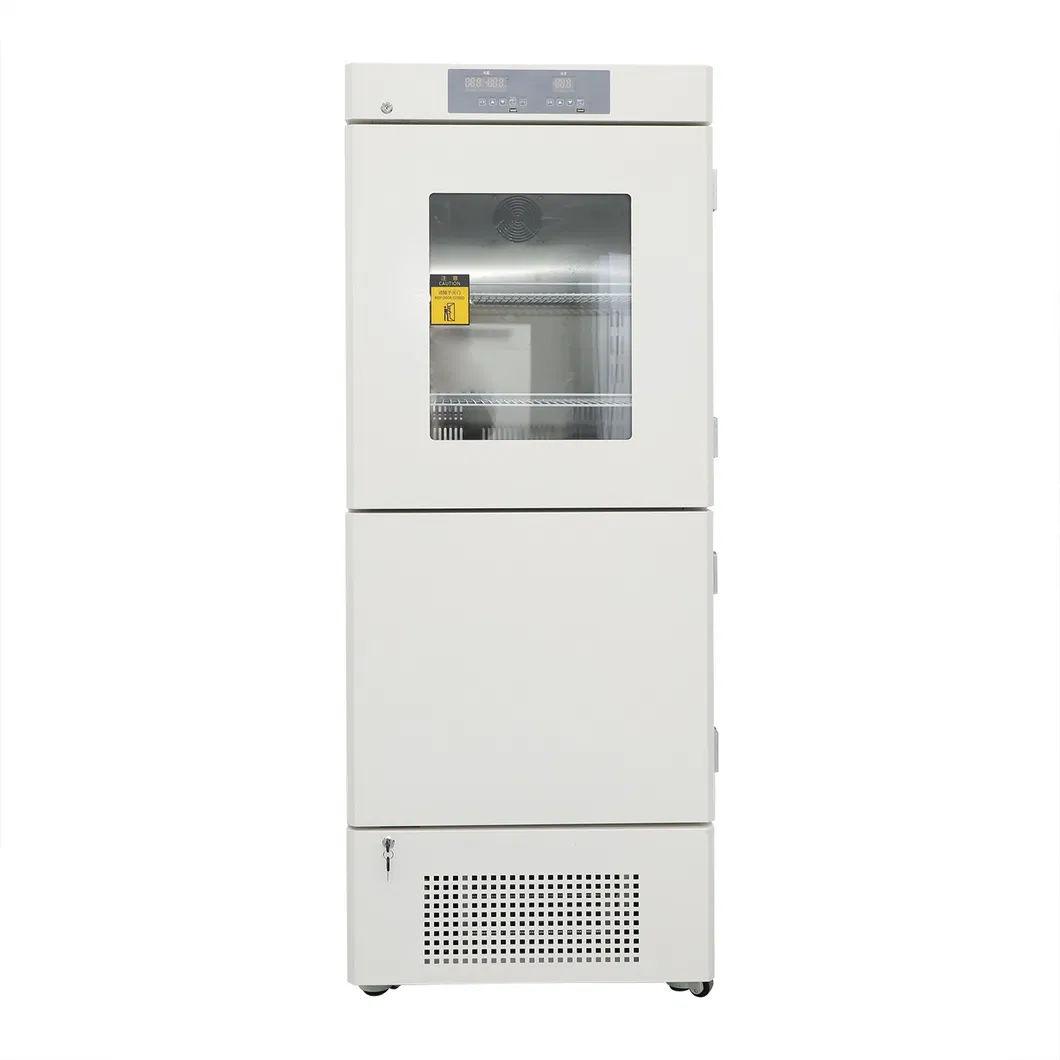

Product Detail
📍
Application Used for storing vaccines, pharmaceuticals, and various biological agents. Suitable for disease control centers, clinics, hospitals, laboratories, and research institutions.
⚙️

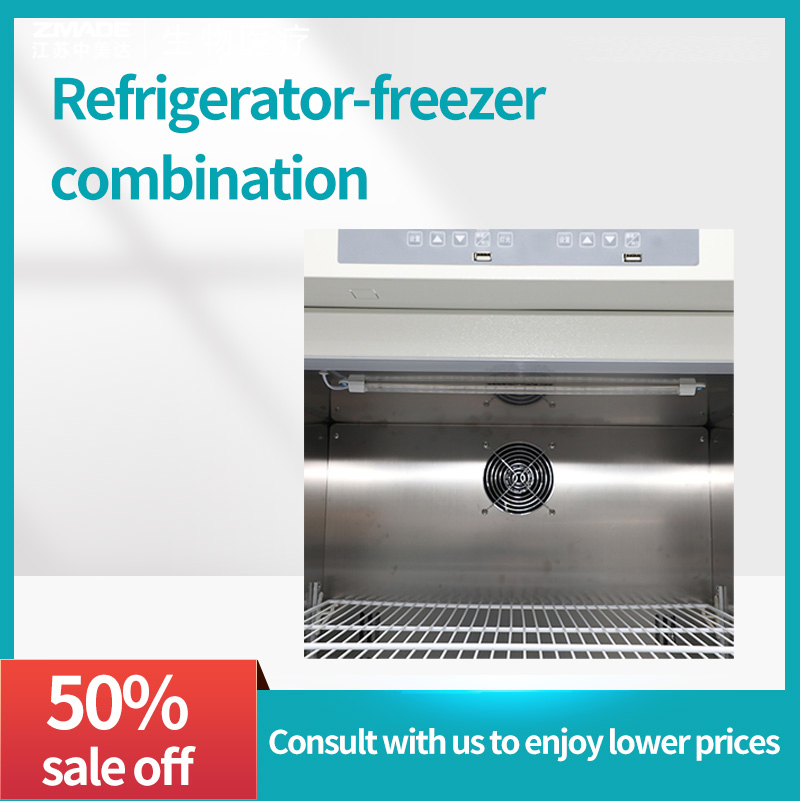

Temperature Control System Microcomputer digital control with 0.1°C precision. Adjustable ranges: Refrigerator (2°C to 8°C) and Freezer (-10°C to -25°C). Features professional air-cooling and automated data logging for up to 400,000 points (USB export available).
🛡️
Safety System Comprehensive alarm system including audible and visual alerts for high/low temperature, sensor failure, door-open, and power failure. Includes protection for frequent starts.
❄️
Refrigeration System Dual compressor system for independent compartment operation. Uses fluorine-free eco-friendly refrigerant, extra-thick foam insulation, and premium quiet fans for stable performance.
👤

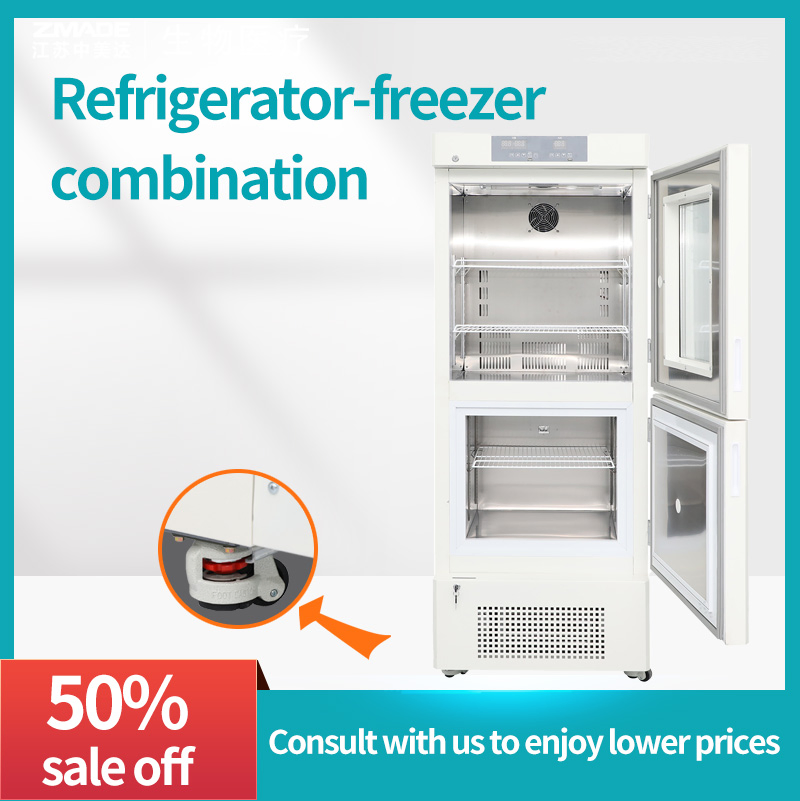

User-Friendly Design Built-in stainless steel shelves and food-grade stainless steel inner tank. Equipped with heavy-duty casters, safety door locks, and a top-mounted LED control panel.
Technical Specifications
Model Capacity (L) Temperature Range (ºC) External Size (W*D*H) mm Internal Size (W*D*H) mm Power (W) NW (Kgs)
YCD-25V215 215 2~8 / -10~-25 540*595*1745 450*595*780 / 410*420*670 150 75
YCD-300 300 2~8 / -10~-25 600*609*1750 516*498*730 / 458*469*356 300 132
YCD-328 328 2~8 / -10~-25 650*700*1885 600*470*690 / 500*470*430 400 200
Frequently Asked Questions
What is the temperature range of the dual compartments?
The refrigerator compartment ranges from 2°C to 8°C, while the freezer compartment is adjustable between -10°C and -25°C.
How does the temperature monitoring system work?
The unit uses a microcomputer digital control system that logs up to 400,000 data points. You can easily export this data via USB in PDF or TXT formats.
What safety alarms are included in this medical freezer?
It features audible and visual alarms for high/low temperature, sensor failure, door-open notifications, and power failure alerts.
Is the interior material durable and safe for medical agents?
Yes, the freezer features a food-grade stainless steel inner tank which is rust-proof and safe for storing pharmaceuticals and biological agents.
Can the refrigerator and freezer run independently?
Yes, the system is designed with a dual compressor setup, allowing the refrigerator and freezer compartments to operate independently for optimal performance.
What environment is suitable for operating this unit?
This medical freezer is designed to operate efficiently in ambient environments between 10°C and 32°C.
